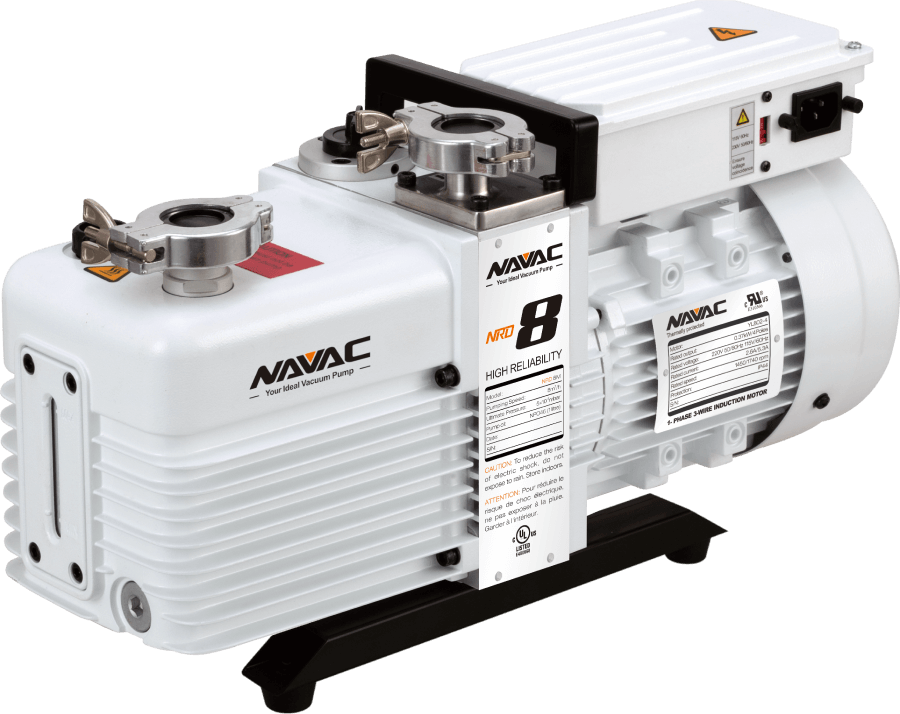

NAVAC NRD M Series Dual-Stage Oil-Sealed Corrosion Resistant Rotary Vane Vacuum Pump
0.5 - 3 HP, single/three-phase, Mineral Oil standard (PFPE optional), Corrosion resistant design
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The NRD M series pumps are designed to perform in mildly corrosive applications such as H2O2. These reliable, heavy duty vacuum pumps include an integrated cylindrical design structure, an innovative forced oil circulation system, automatic oil anti-suck back valve and adjustable gas ballast. Suitable for a wide variety of applications in R&D, science, and medical fields. These pumps can be used for analytical systems, vacuum ovens, vacuum coating, sterilization, freeze drying, microscopy and backing pumps for turbo pumps, diffusion pumps and roots blowers.
Overview and Features
Features
- 0.5 – 3 HP
- Single or Three-phase options
- Two-shift adjustable gas ballast valve
- Dual automatic anti-suckback design
- Forced oil circulation system
- Integrated cylinder structure and pin connection
- Standard mineral oil provided (PFPE prepared option available)
- Corrosion resistant design
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 0.5 HP, 1 HP, 1.5 HP, 2 HP, 3 HP |
|---|---|
| Voltage | 115/230V/1PH/60Hz, 115V/1PH/60Hz, 230V/1PH/60Hz, 230/460V/3PH/60Hz |
| Capacity | 5.6 CFM, 11.3 CFM, 17 CFM, 21.2 CFM, 34 CFM, 46 CFM |
| Oil Type | Mineral (NPO46 OIL INCLUDED), Mineral (NPO68 OIL INCLUDED), Mineral (NPO100 OIL INCLUDED), PFPE prepped (OIL NOT INCLUDED) |
