DVP Vacuum Technology

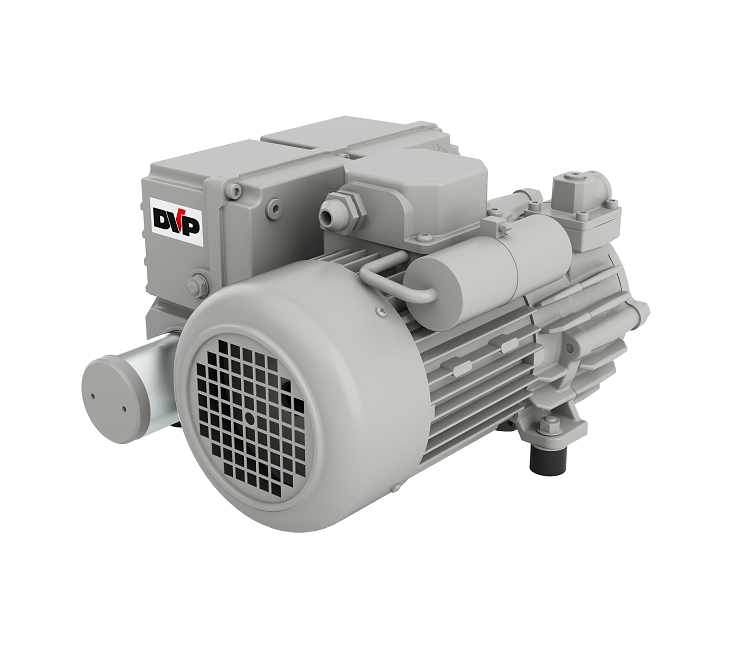

DVP LC WR Series Oil Lubricated Rotary Vane Vacuum Pumps
0.7 to 5 HP, 8.2 to 106.6 CFM flow rate, equipped with a device which splits oil and water condensate
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The DVP LC WR series has the same features as their LC counterparts, but they are equipped with a device which splits oil and water condensate, being the latter expelled when the pump is stopped. As a result of this construction it is possible to use these pumps in applications where very high concentrations of water vapor might be present and where standard pumps could not be used. The WR pumps are suitable for continuous suction within a pressure range from 400 to 4 mbars (Abs.).
The pumps are equipped with:
Oil check valve
Exhaust mist eliminator
Automatic floating oil recovery valve
Gas ballast continuously working
Oil level switch
Shock mounts
Pack of oil
Main application fields include:
vacuum packing machines; bag filling machines; precious metal vacuum casting machines; dental field; graphic and paper industry; CNC marble and glass machines; vacuum lifting machines; garage and workshop equipment.
Overview and Features
Features
- Oil check valve
- Exhaust mist eliminator
- Automatic floating oil recovery valve
- Gas ballast continuously working
- Oil level switch
- Shock mounts
- Pack of oil
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 0.7 HP, 1.2 HP, 1.8 HP, 2.4 HP, 3.6 HP, 5 HP |
|---|---|
| Capacity | 8.2 CFM, 17.1 CFM, 28.3 CFM, 42.4 CFM, 74.8 CFM, 106.6 CFM |
| Voltage | No motor, 220-240 50/60, 110-115/60, UL-IE3 M-VOLT 50/60Hz, IE3-UL MOT. 208-230/460/60, 175-300/300-520/50-60, IE2 MOT. 230/400/50 265/460/60 |
