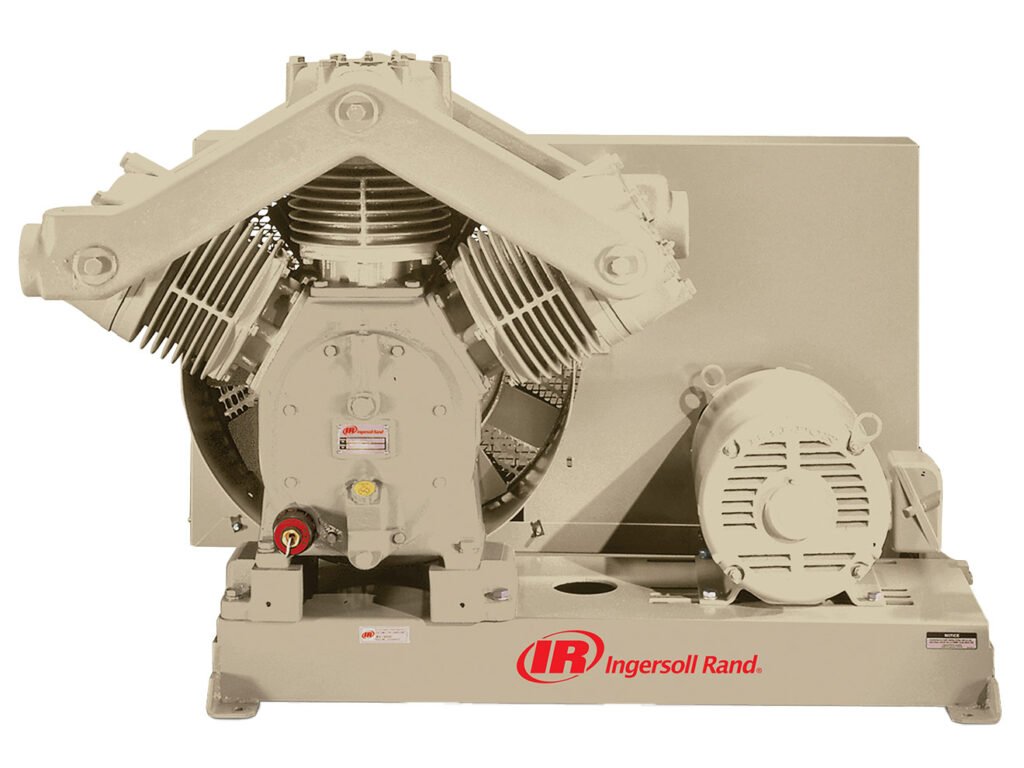

Ingersoll Rand Reciprocating Vacuum System
Cast iron vacuum pump, either base or tank mounted, up to 29 in Hg max vacuum
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Ingersoll Rand Reciprocating Vacuum Pump is compact, economical, and dependable with high operating efficiency and low maintenance for demanding applications.
Overview and Features
Features
- Cast iron frame and cylinder construction
- Base mount or tank mount
- 80, 120, or 240 gallon tanks (depending on model)
- Horsepower:
- 1.5 to 20 HP simplex (18 to 294 CFM)
- 3 to 40 HP duplex (36 to 588 CFM)
- NEMA 1 electrics standard
- ODP motor
- Low oil level switch
- Manual drain
- Optional motors and starters available
- Auto start and stop options
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Simplex, Duplex |
|---|---|
| Horsepower | 1.5 HP, 3 HP (two 1.5 HP pumps), 2 HP, 4 HP (two 2 HP pumps), 3 HP, 6 HP (two 3 HP pumps), 5 HP, 10 HP (two 5 HP pumps), 7.5 HP, 15 HP (two 7.5 HP pumps), 15 HP, 30 HP (two 15 HP pumps), 20 HP, 40 HP (two 20 HP pumps) |
| Piston Displacement | 18 CFM, 36 CFM, 32 CFM, 64 CFM, 60 CFM, 120 CFM, 99 CFM, 198 CFM, 133 CFM, 266 CFM, 214 CFM, 428 CFM, 294 CFM, 588 CFM |
| Max Vacuum Level | 29 in Hg, 28.8 in Hg, 28.7 in Hg |
| Mounting | Base mount, Horizontal 80 gallon tank, Horizontal 120 gallon tank, Horizontal 240 gallon tank |
| Motor | No motor, 200/3/60, 230/3/60, 460/3/60, 575/3/60, 115/1/60, 230/1/60 |
| Starter | None, E-Series starter (mounted and wired), NEMA 4 deluxe starter (mounted and wired), E-Series non-combination alternator (mounted and wired), NEMA 1 deluxe combination alternator (mounted and wired), NEMA 4 deluxe combination alternator (mounted and wired) |
| Auto Start and Stop | None, NEMA 4, NEMA 7 |
