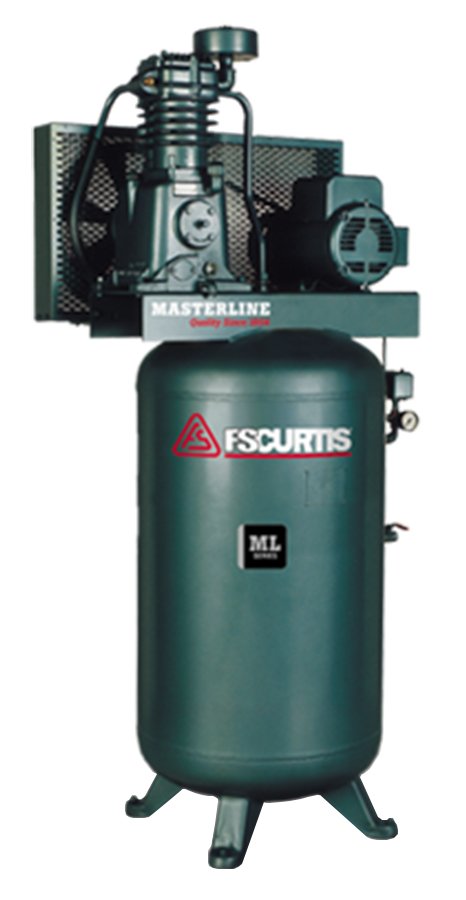

FS-Curtis ML Series Two Stage Piston Air Compressor
5 to 30 hp, heavy duty air system with Centro-Ring pressure lubrication and cast iron pump
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The FS-Curtis ML Series two stage piston air compressor is available from 5 to 30 HP in base and tank mount configurations. With patented Centro-Ring pressure lubrication, pressurized oil is supplied internally to all bearings and critical wear surfaces through the rifle-drilled crankshaft and connecting rods. The slow-turning pump increases pump life, while the cast iron design is corrosion-resistant for industrial performance. The ML Series features stainless steel valve assemblies, manual tank drain, oversized tapered main roller bearings, finned intercooler, metal intake filter/silencer, factory filled stamped steel belt guard, and suction valve head unloaders.
The ML Series is also available with an Ultrapack package, which adds the most common options and accessories. The Ultrapack has the standard features as well as an air cooled aftercooler, dual control (10 to 30 HP), low oil level shutdown, automatic tank drain, and tank isolator pads.
Overview and Features
Features
- 5 to 30 HP
- 19.1 to 102.2 CFM capacity
- 175 PSI working pressure
- 32 to 104°F ambient temperature range
- Voltage:
- 230/1/60
- 208-230/460/3/60
- 230/3/60
- 460/3/60
- Dynamically balanced flywheel
- Magnetic starter
- NEMA-1 control panel
- OSHA approved totally enclosed belt guard
- UL approved pressure switch
- ASME approved discharge air service valve
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Base mount, Base mount with tank, Tank mount |
|---|---|
| Horsepower | 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, 25 HP, 30 HP |
| Capacity | 19.1 CFM, 28.7 CFM, 39.8 CFM, 49.5 CFM, 55.8 CFM, 65.1 CFM, 79.3 CFM, 82.2 CFM, 102.2 CFM |
| Engine | D96, C79, D97, C89, C98 |
| Tank Size and Orientation | None, 80 gallon, vertical, 80 gallon, horizontal, 120 gallon, vertical, 120 gallon, horizontal, 200 gallon, horizontal |
| Package | Standard, Ultrapack |
| Voltage | 230/1/60, 200-208/3/60, 230/3/60, 460/3/60 |
