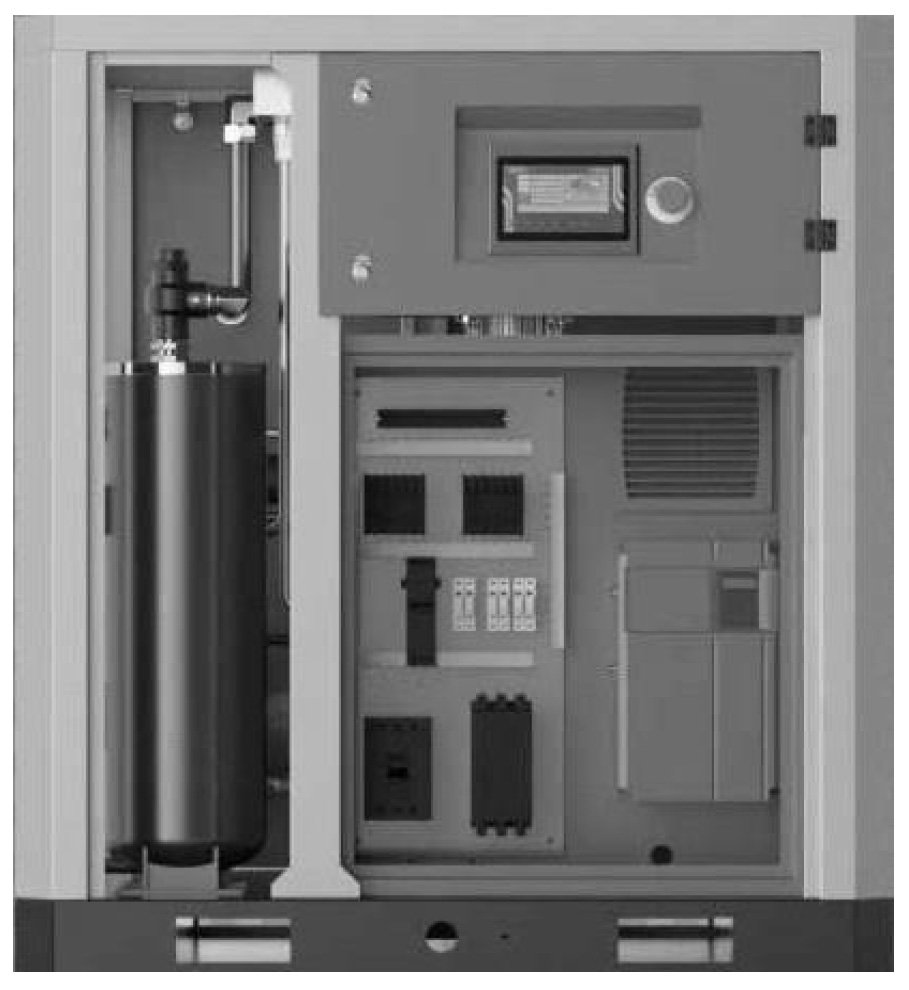

Industrial Gold PM Series Rotary Screw Air Compressor
Variable speed drive compressor with permanent magnet motor, flux vector inverter, and touch screen controller
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Industrial Gold PM Series rotary screw air compressor features a liquid cooled permanent magnet (PM) motor using the air compressor coolant for both the motor and airend. The PM motor and the rotary screw airend were developed side-by-side to provide the most electrically efficient design. The airend utilizes oversized rotors to keep the maximum rpms at 3000 or less on all models (except 40 HP model). The thermostat is relay controlled, only running the cooling fan when needed and keeping the operating temperatures at a optimal range of 175 to 195°F. The air/oil cooler is 50% oversized for operating in ambient temperature to 110°F at 100% duty cycle.
Overview and Features
Features
- 10 to 100 HP options
- Permanent magnet motor:
- Lubricant-cooled
- Variable speed drive
- IP65 protection
- UL standards certified
- Rotary screw airend:
- Direct drive
- Oversized rotors with new profile
- 3000 RPM or less
- Oversized cooler design
- VSD fan
- CAS-9000 touch controller
- Steel internal piping
- Nano scale heavy duty inlet filter
- Filters dust particles below 0.3 micron
- Pressure drop indicator
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 10 HP, 15 HP, 20 HP, 30 HP, 50 HP, 75 HP, 100 HP |
|---|---|
| Capacity | 39 CFM, 60 CFM, 81 CFM, 122 CFM, 212 CFM, 342 CFM, 455 CFM |
| Pressure | 125 PSI |
| Voltage | 230/3/60, 460/3/60 |
