Industrial Gold

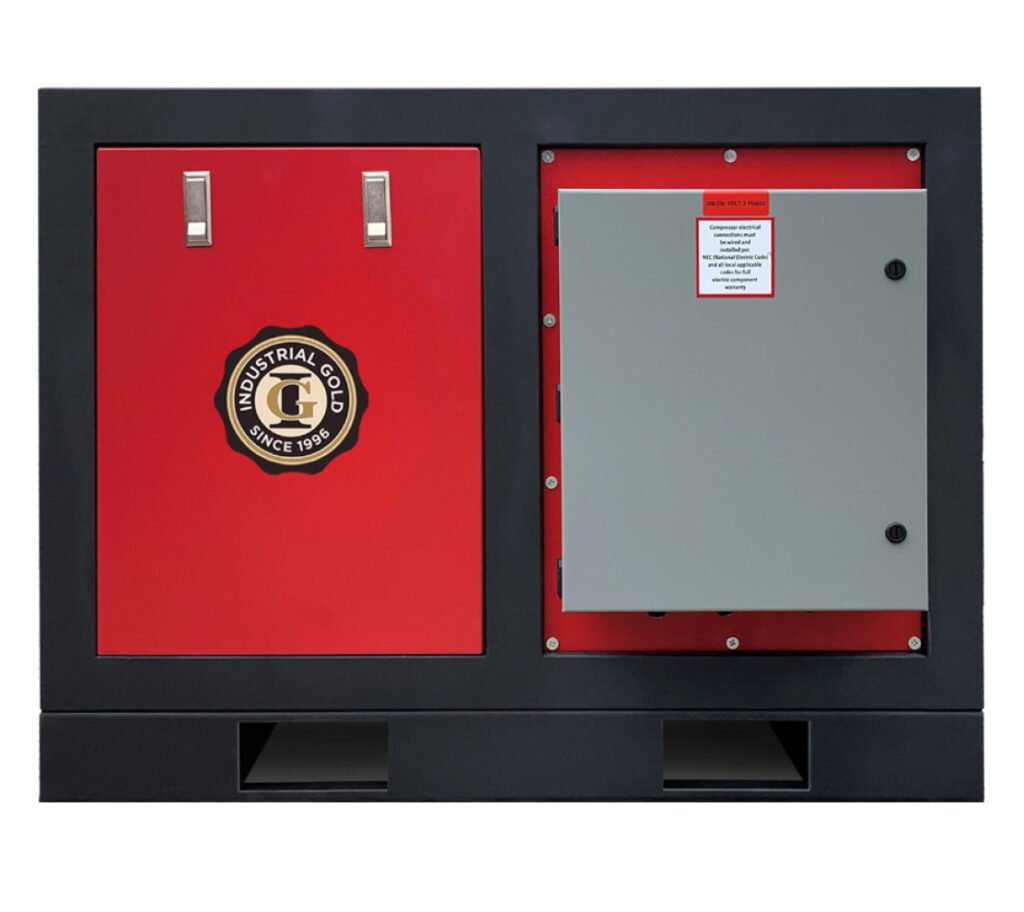

Industrial Gold RS Series Enclosed Rotary Screw Air Compressor
5 to 100 HP compressor with a sound attenuating enclosure for 100% duty cycle applications
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Industrial Gold RS Series enclosed rotary screw air compressor provides the same build quality and components as the RS Series open frame compressor with quieter operation. Wrapped in a sound attenuating enclosure, Industrial Gold enclosed compressors combine low dBA levels with reliability, efficiency, and productivity. The 100% duty cycle assures the compressor can’t be overworked. The RS Series features easy to read and access gauges, an easy to access oil cooler for cleaning, an extended oil drain with ball valve, and simplified operating controls with no micro-processor.
The RS Series enclosed compressor is available in a base mount configuration or in a CDR package that includes an air receiver tank, automatic tank drain, refrigerated air dryer, SMART contact controls, stainless steel discharge lines, and vibration isolation pads.
Overview and Features
Features
- 16 to 405 CFM
- 70 to 81 dBA (dependent on HP)
- 150 PSI pressure rating
- Base mount or tank mount with dryer
- Air/oil cooler
- Automatic belt tensioning
- Factory filled synthetic fluid
- Heavy duty air filter
- Single control solenoid operation
- Spin on separator
- Vertical draft ventilation
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, 25 HP, 30 HP, 40 HP, 50 HP, 60 HP, 75 HP, 100 HP |
|---|---|
| Capacity | 16 CFM, 26 CFM, 39 CFM, 54 CFM, 78 CFM, 102 CFM, 125 CFM, 155 CFM, 185 CFM, 210 CFM, 295 CFM, 405 CFM |
| Voltage | 208-230/1/60, 208-230/460/3/60, 460/3/60 |
| Configuration | Base mount, 80 gallon tank mount, 120 gallon tank mount, 80 gallon tank mount with dryer, 120 gallon tank mount with dryer |
