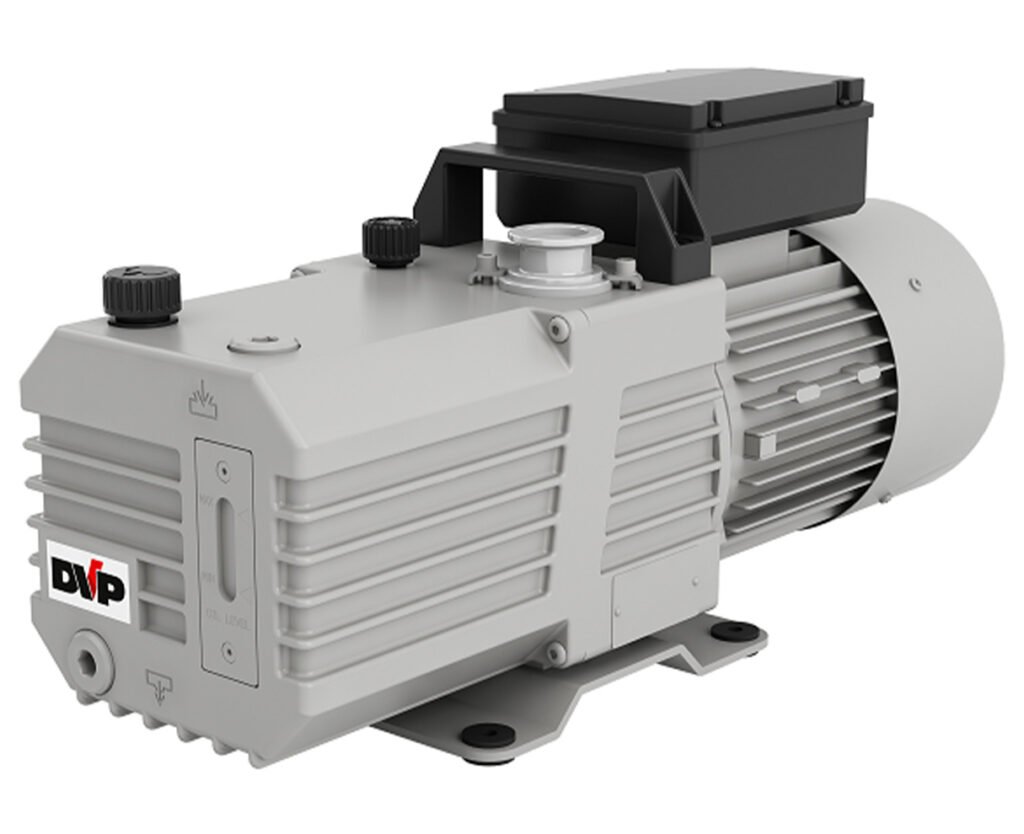

DVP DC Series Lubricated High Vacuum Pump
Two stage pump with vacuum down to 0.004 Torr and up to 10 CFM capacity
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The DVP DC Series Lubricated High Vacuum Pump features high reliability, vibration-free, low noise level, and is easy to maintain, making it suitable for laboratories, research institutes, and universities. A coupling drive connecting the motor and pump ensures reliable operation, long life, and easy maintenance. The DC Series pumps are ideal for use as a backing pump on ultra-high vacuum units.
The operating principle of the DC Series is similar to lubricated rotary vane vacuum pumps. However, the stator is immersed in the lubrification oil which also seals the air loss. The pressure levels reached by this type of pump are higher than other rotary vane pumps. These pumps are equipped with a gas ballast system to avoid the condensation of the water vapor.
Applications:
- Laser
- Leak detectors
- Freeze dryers
- Mass spectrometers and chromatography
- Laboratory autoclaves
- Microscopy
- Space simulators
- Under vacuum distillers
- Gel dryers
- Centrifuges and laboratory autoclaves
- Metallurgy
- Metallization
- Semiconductors
Overview and Features
Features
- 3.8, 5.7, and 10 CFM nominal capacity options
- 0.9 HP
- Thermal protector
- Gas Ballast
- Handle for transport
- Shock mounts
- Pack of SW100 oil
- Hydraulic non-return system
- Handle for transport
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 3.8 CFM, 5.7 CFM, 10 CFM |
|---|---|
| Horsepower | 0.9 HP |
| Voltage | 220-240/1/50-60 |
