Republic Manufacturing

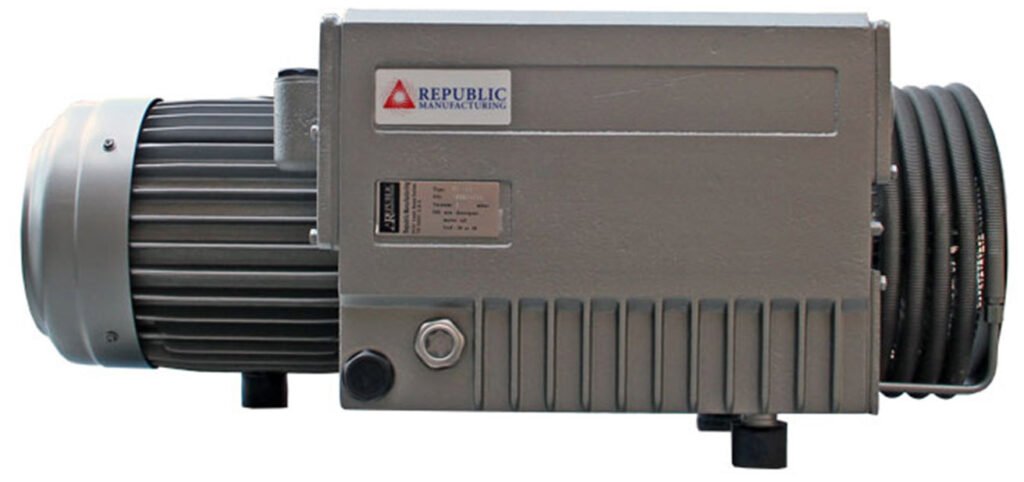

Republic Manufacturing RX Series Rotary Vane Vacuum Pump
Heavy duty, oil lubricated vacuum pump, 7 to 459 CFM nominal capacity, 29.3 to 29.9"HgV ultimate vacuum
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Republic Manufacturing RX Series Rotary Vane Vacuum Pump is a single-stage, dry-cooled, and direct-driven for continuous operation. The RX Series is used in a variety of industries such as meat packaging, food processing, thermoforming, composites,
medical, laboratory, vacuum cooling, robotics, degassing, and autoclaves.
Overview and Features
Features
- 0.5 to 25 HP
- 7 to 459 CFM capacity
- 29.3 to 29.9″ HgV ultimate vacuum
- C-Face TEFC motor
- Fine mesh inlet screen
- Gas ballast valve
- Exhaust oil separator
- 208-230/460/3/60 voltage
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 0.5 HP, 1 HP, 1.5 HP, 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, 20 HP, 25 HP |
|---|---|
| Capacity | 7 CFM, 8 CFM, 11 CFM, 21 CFM, 28 CFM, 44 CFM, 70 CFM, 99 CFM, 113 CFM, 151 CFM, 177 CFM, 212 CFM, 297 CFM, 353 CFM, 459 CFM |
| Vacuum | 29.3" Hg, 29.8" Hg, 29.9" Hg |
