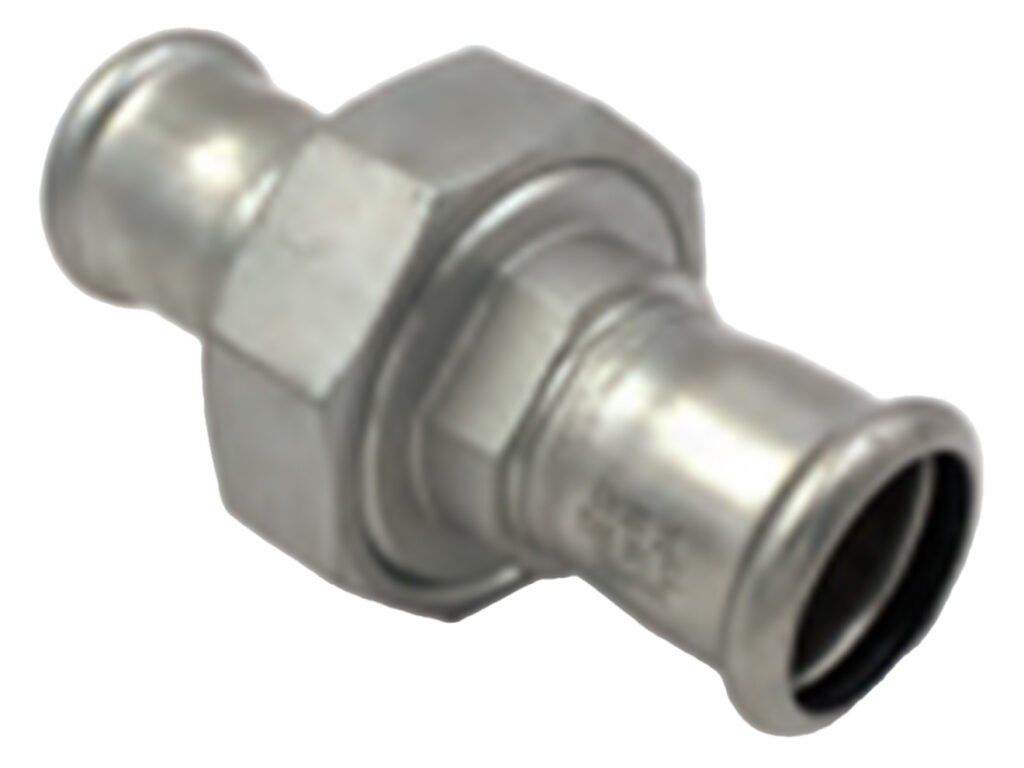

Applied System Technologies TruPress Union Connector
15 to 54mm pipe sizes, Conical or Flat Faced union, 316L stainless steel, EPDM seal rings
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Applied System Technologies TruPress Union Connector is manufactured using high-alloyed austenitic 316L stainless steel. The formed ends of the press fittings are fitted with a black EPDM seal ring for standard application. The press connection is made by inserting the pipe into the press fitting to the marked insertion depth. The connection is created by pressing using an approved pressing tool.
Applications:
- Compressed air
- Nitrogen
- Argon
- Inert gas
- Saturated steam
- Vacuum
- Drinking water
- Heating
- Extinguishing water
- Sprinkler systems
- Cooling
- Solar
Overview and Features
Features
- 15 to 54mm pipe diameters
- Conical or Flat Faced union options
- 316L Stainless Steel construction
- Black EPDM seal ring
- 232 PSI max pressure
- 428°F max temperature
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Size | 15mm Conical Union, 22mm Conical Union, 28mm Conical Union, 42mm Conical Union, 54mm Conical Union, 15mm Flat Faced Union, 22mm Flat Faced Union, 28mm Flat Faced Union, 42mm Flat Faced Union, 54mm Flat Faced Union |
|---|
