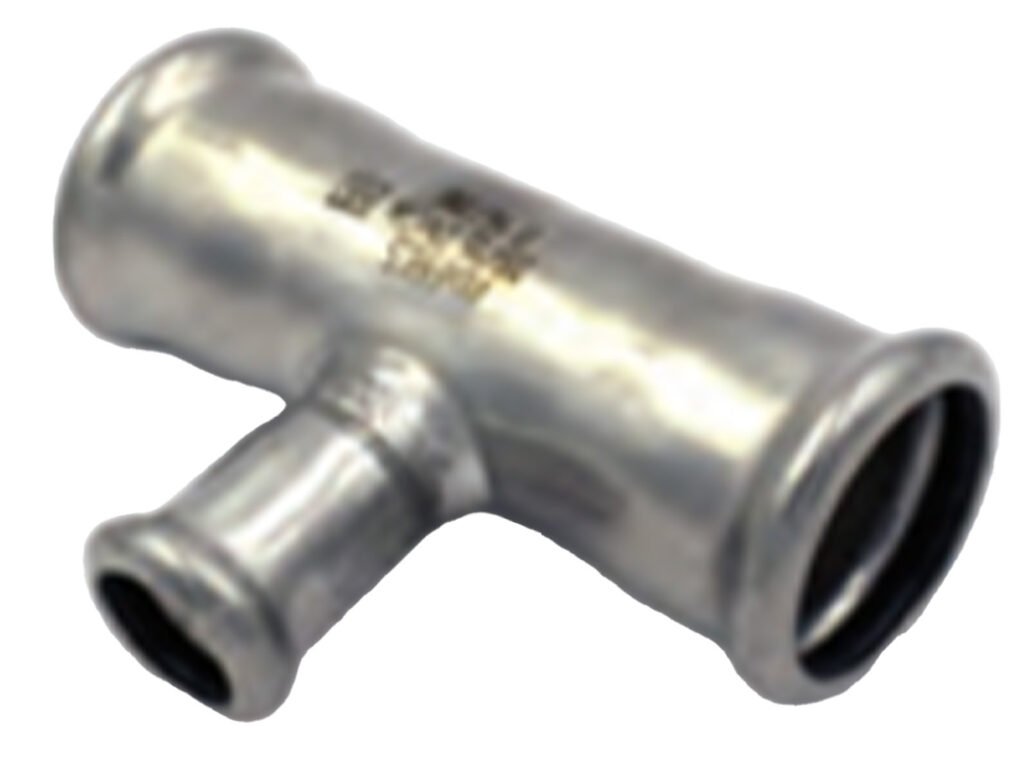

Applied System Technologies TruPress Reducing Tee

Product overview

Built around your operating requirements.

Description

The Applied System Technologies TruPress Reducing Tee is manufactured using high-alloyed austenitic 316L stainless steel. The formed ends of the press fittings are fitted with a black EPDM seal ring for standard application. The press connection is made by inserting the pipe into the press fitting to the marked insertion depth. The connection is created by pressing using an approved pressing tool.

Applications:

Compressed air
Nitrogen
Argon
Inert gas
Saturated steam
Vacuum
Drinking water
Heating
Extinguishing water
Sprinkler systems
Cooling
Solar

Overview and Features

Features

22 to 168mm thru pipe sizes
Reductions down to 15mm
316L Stainless Steel construction
Black EPDM seal ring
232 PSI max pressure
428°F max temperature

Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.

Available specifications

Size	22mm x 15mm x 22mm Reducing Tee, 28mm x 15mm x 28mm Reducing Tee, 28mm x 22mm x 28mm Reducing Tee, 42mm x 22mm x 42mm Reducing Tee, 42mm x 28mm x 42mm Reducing Tee, 54mm x 22mm x 54mm Reducing Tee, 54mm x 28mm x 54mm Reducing Tee, 54mm x 42mm x 54mm Reducing Tee, 76mm x 22mm x 76mm Reducing Tee, 76mm x 28mm x 76mm Reducing Tee, 76mm x 42mm x 76mm Reducing Tee, 76mm x 54mm x 76mm Reducing Tee, 88mm x 22mm x 88mm Reducing Tee, 88mm x 28mm x 88mm Reducing Tee, 88mm x 42mm x 88mm Reducing Tee, 88mm x 54mm x 88mm Reducing Tee, 88mm x 76mm x 88mm Reducing Tee, 108mm x 22mm x 108mm Reducing Tee, 108mm x 28mm x 108mm Reducing Tee, 108mm x 42mm x 108mm Reducing Tee, 108mm x 54mm x 108mm Reducing Tee, 108mm x 76mm x 108mm Reducing Tee, 108mm x 88mm x 108mm Reducing Tee, 168mm x 76mm x 168mm Reducing Tee, 168mm x 88mm x 168mm Reducing Tee, 168mm x 108mm x 168mm Reducing Tee

Size

22mm x 15mm x 22mm Reducing Tee, 28mm x 15mm x 28mm Reducing Tee, 28mm x 22mm x 28mm Reducing Tee, 42mm x 22mm x 42mm Reducing Tee, 42mm x 28mm x 42mm Reducing Tee, 54mm x 22mm x 54mm Reducing Tee, 54mm x 28mm x 54mm Reducing Tee, 54mm x 42mm x 54mm Reducing Tee, 76mm x 22mm x 76mm Reducing Tee, 76mm x 28mm x 76mm Reducing Tee, 76mm x 42mm x 76mm Reducing Tee, 76mm x 54mm x 76mm Reducing Tee, 88mm x 22mm x 88mm Reducing Tee, 88mm x 28mm x 88mm Reducing Tee, 88mm x 42mm x 88mm Reducing Tee, 88mm x 54mm x 88mm Reducing Tee, 88mm x 76mm x 88mm Reducing Tee, 108mm x 22mm x 108mm Reducing Tee, 108mm x 28mm x 108mm Reducing Tee, 108mm x 42mm x 108mm Reducing Tee, 108mm x 54mm x 108mm Reducing Tee, 108mm x 76mm x 108mm Reducing Tee, 108mm x 88mm x 108mm Reducing Tee, 168mm x 76mm x 168mm Reducing Tee, 168mm x 88mm x 168mm Reducing Tee, 168mm x 108mm x 168mm Reducing Tee
