Applied System Technologies
Applied System Technologies TruPress ANSI Flange Adapter
15 to 108mm pipe sizes, 316L stainless steel, EPDM seal rings
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

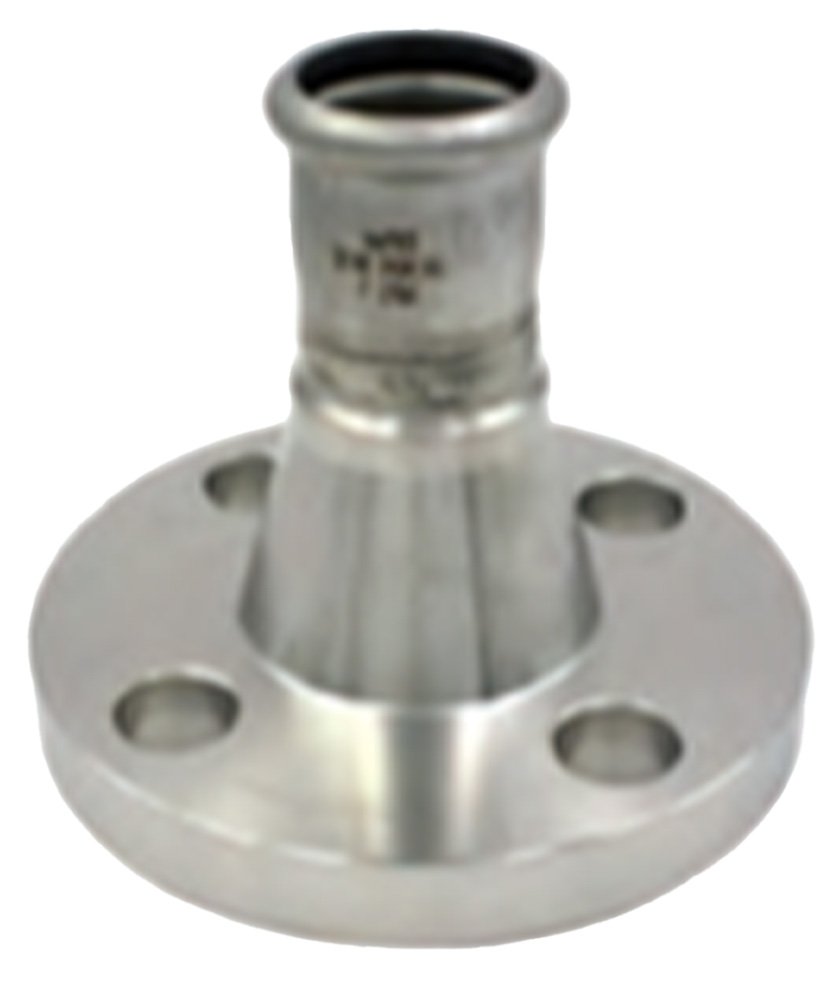

The Applied System Technologies TruPress ANSI Flange Adapter is manufactured using high-alloyed austenitic 316L stainless steel. The formed ends of the press fittings are fitted with a black EPDM seal ring for standard application. The press connection is made by inserting the pipe into the press fitting to the marked insertion depth. The connection is created by pressing using an approved pressing tool.
Applications:
- Compressed air
- Nitrogen
- Argon
- Inert gas
- Saturated steam
- Vacuum
- Drinking water
- Heating
- Extinguishing water
- Sprinkler systems
- Cooling
- Solar
Overview and Features
Features
- 15 to 108mm pipe diameters
- 316L Stainless Steel construction
- Black EPDM seal ring
- 232 PSI max pressure
- 428°F max temperature
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Size | 15mm, 22mm, 28mm, 42mm, 54mm, 76mm, 88mm, 108mm |
|---|
