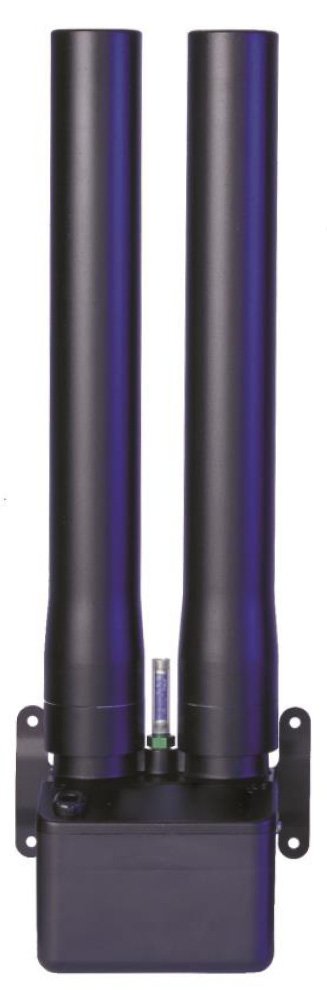

Altec AIR VSA Series Heatless Regenerative Desiccant Air Dryer
Heatless desiccant dryer with dual inlet/outlet ports, inlet flow rates up to 12 SCFM
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Altec AIR VSA Series heatless regenerative desiccant dryer utilizes Pressure Swing Adsorption (PSA) technology. Compressed air is passed through the inlet to one desiccant tower where water vapor is removed. The dry air then continues to the outlet side of the manifold and out to the application. A portion of the dried air is expanded through an orifice and directed back through the offline desiccant tower where the accumulated moisture is purged. The solid-state timer and two solenoid valves reverse the process.
Overview and Features
Features
- 2.8 to 12 SCFM options
- 120°F max inlet temperature
- 150 PSI max pressure
- Solid-state timer with built-in memory
- Fixed orifice purge control
- Dual inlet and outlet port configurations
- -40°F standard outlet dew point
- 120 and 240 VAC input voltages available
- Optional moisture indicator
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 2.8 SCFM, 5.8 SCFM, 8.0 SCFM, 12.0 SCFM |
|---|---|
| Voltage | 120/1/60, 240/1/60 |
| Moisture Indicator | None, Add moisture indicator |
