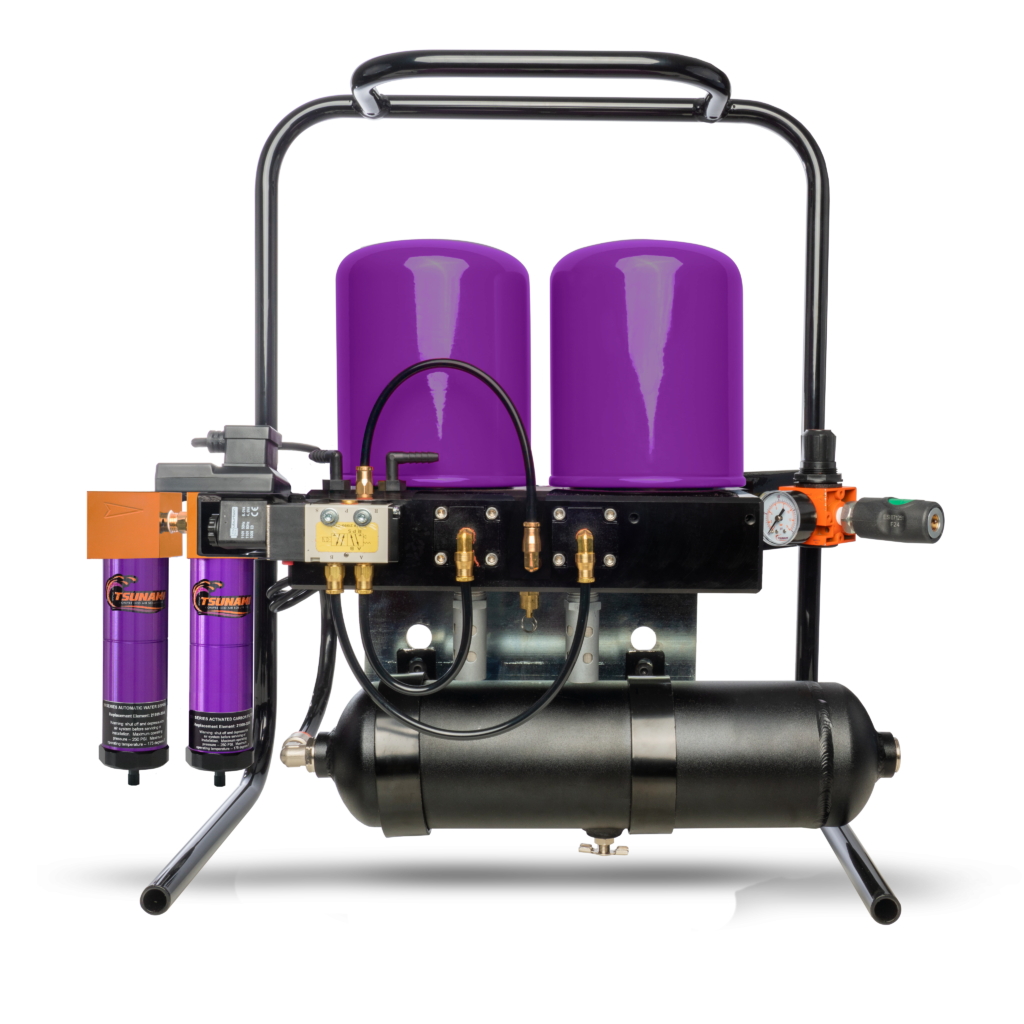

Tsunami Portable Pure-5T Regenerative Desiccant Air Dryer w/ Tank
The Portable Pure-5 Series Tank Dryer comes with a 1-galllon storage tank attachment to maximize laminar air flow during the regeneration cycles.
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Pure-5 Series Regenerative Dryer is rated for 15 CFM airflow, and fitted for 5 Hp compressors. The Pure-5 system uses a Solenoid Timer Valve to control the dryer and Tsunami pre-filtration to assure removal of water, oil, and particulates before entering the dryer.
Overview and Features
Features
- Dryer Performance:
- Low relative humidity – down to .01% RH
- Down to -80°F dew points
- Easy, low-cost maintenance – under $100/year average
- 2-stage pre-filtration
- 1st Stage Water Separator:
- Removes liquid water
- Filters particulate down to 10 micron
- 2nd Stage Oil Coalescing Filter:
- Removes bulk oils and aerosols
- Filters particulate down to .01 micron
- 1st Stage Water Separator:
- 175 PSI max operating pressure
- Molecular sieve desiccant
- Solenoid valve timer
- Automatic drain
- Purge exhaust muffler
- Wall mounting brackets
- 1/4″ NPT inlet and outlet connections
- Outlet Regulator
- Heater pads available for cold temp application
- 1-Gallon Storage Tank
- Easy-Carrying with Portable Unit
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Drain Type | Float, Pneumatic |
|---|---|
| Capacity | 15 CFM (5HP) |
| Pressure | 175 PSI |
| Power | 120 V |
