DVP Vacuum Technology

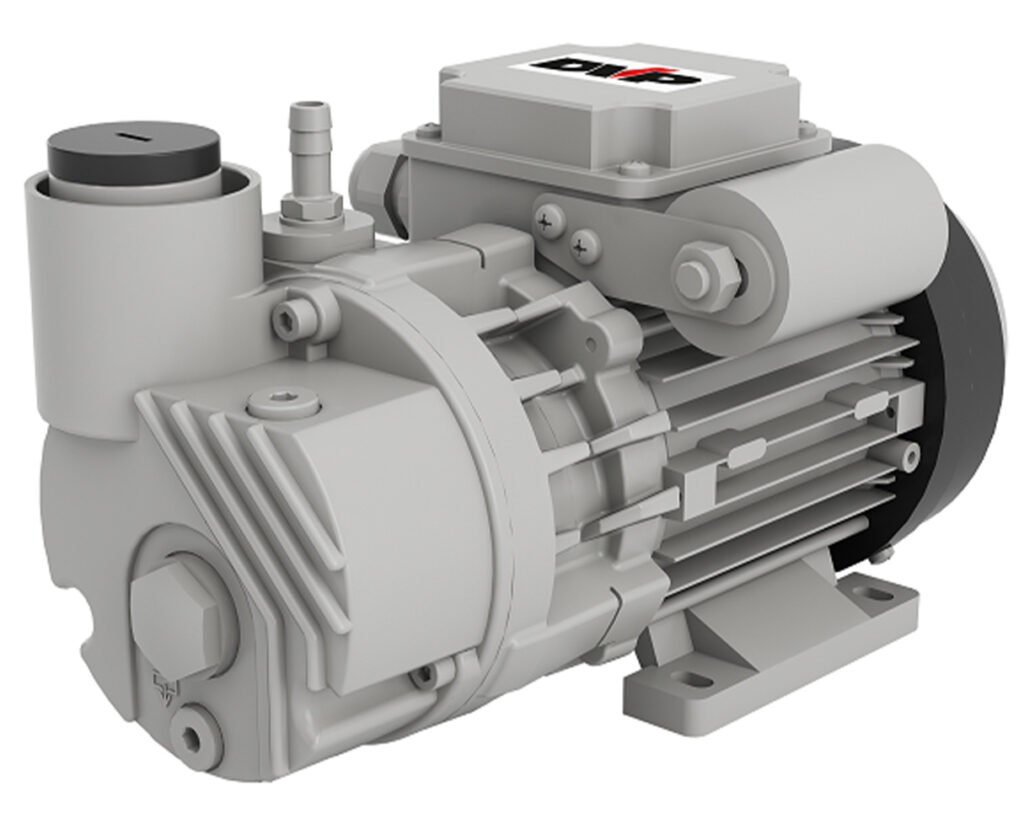

DVP LC Series Oil Lubricated Rotary Vane Vacuum Pump
Compact lubricated pump with 1.5 to 215 CFM capacities
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The DVP LC Series Oil Lubricated Rotary Vane Vacuum Pump is compact and lightweight allowing for installation in tight and restrictive spaces. These pumps are used when the intake flow may contain moisture, or when a better final pressure is required. These pumps may run continuously within certain pressure ranges, or connected to containers to be emptied, whose volume is appropriately sized for the pump flow rate. Long-term use at atmospheric pressure is not recommended.
The lubrification allows these pumps to intake water vapor. To avoid condensation of the water vapor, the lubricated rotary vane vacuum pumps are equipped with gas ballast, a system that introduces air in the compression stage and changes the vapor saturation pressure thus avoiding condensation.
Overview and Features
Features
- 1.5 to 215 CFM nominal capacity options
- 0.2 to 12.1 HP
- Oil check valve
- Exhaust mist eliminator
- Gravity oil recovery valve (1.5 to 2.8 CFM models)
- Floating oil recovery valve (5.3 CFM models and up)
- Rotor and pump body NPO treated
- Thermal protector
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 0.2 HP, 0.4 HP, 0.7 HP, 1.2 HP, 1.8 HP, 2.4 HP, 3.6 HP, 5 HP, 8.9 HP, 12.1 HP |
|---|---|
| Capacity | 1.5 CFM, 2.8 CFM, 5.3 CFM, 8.2 CFM, 14.1 CFM, 17.1 CFM, 28.3 CFM, 42.4 CFM, 74.8 CFM, 106.6 CFM, 144.3 CFM, 215 CFM |
| Voltage | No Motor, 220-240/1/50-60, 110-115/1/50-60, 208-230/460/3/50-60, 100-115/50-60, 175-300/300-520/50-60Hz, 230/400/50 265/460/60, Multi-Volt 50/60Hz, 110-115/60 (Low Noise Variant), 330/575/60, 175-300/300-520/50-60 |
