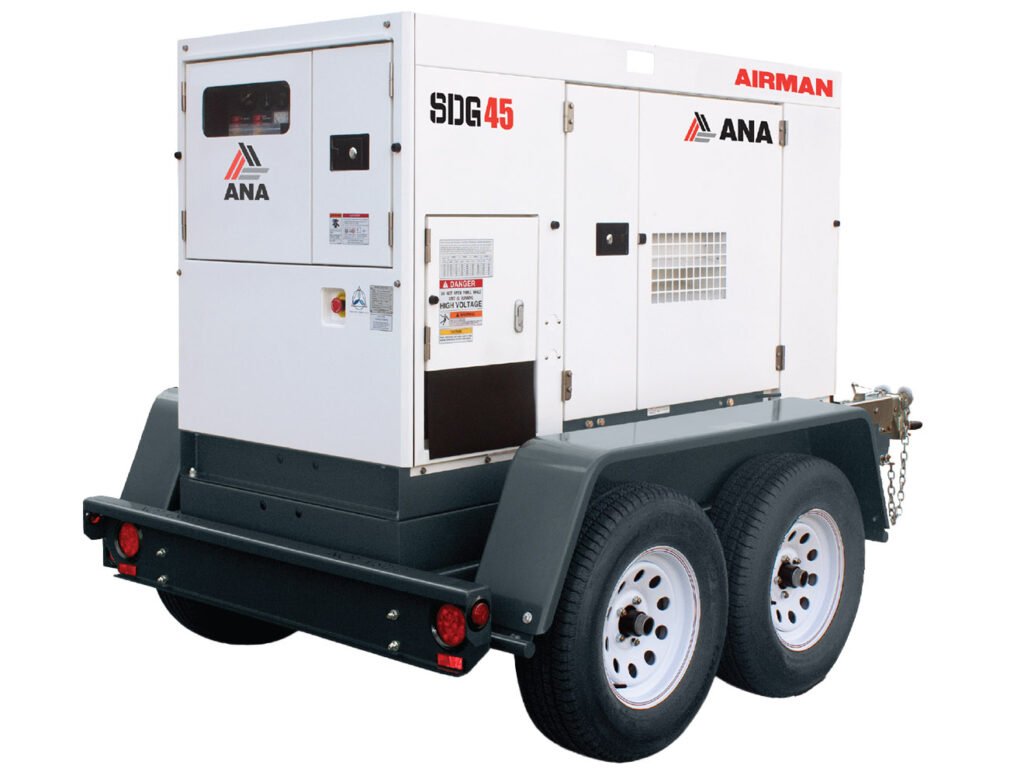

Airman SDG45 Series Diesel Driven Portable Generator
45 kVA prime power, Isuzu 4LE2X Diesel engine, optional VFD model available
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Airman SDG45 Series Diesel Driven Portable Generator delivers 28.75 hours of runtime at full 45 kVA load. Designed for safety and ease of maintenance, it features a curbside electrical panel, automatic shutdowns, and an external drain.
Available in a Variable Frequency Drive (VFD) model that effortlessly powers motors, such as a 40 HP motor, without requiring an oversized unit. Traditionally, a 100kW generator would be necessary, but the V-Pump 45 delivers equivalent performance with a compact design, reducing fuel consumption and operational costs.
Overview and Features
Features
- Power output: SDG45S
- Prime power: 36 kW / 45 kVA
- Standby power: 38.8 kW / 48.5 kVA
- Power output: SDG45SV (VFD model)
- Prime power: 20 kW / 45 kVA
- Standby power: 22 kW / 49.5 kVA
- Voltage: SDG45S
- 1 phase (switchable): 120V / 240V / 277V
- 3 phase (switchable): 208V / 240V / 416V / 480V
- Voltage: SDG45SV (VFD model)
- 400 to 480V, 30 to 60 Hz
- Airman WYE Winding alternator
- 28.75 hrs run time
- Isuzu 4LE2X 57.7 HP Diesel engine
- 80.5 gallon fuel tank
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Model | 45 kVA Generator, 45 kVA VFD Generator (Mitsubishi FR-F800 VFD/Inverter) |
|---|---|
| Configuration | Base mount, Dual Axle Trailer, Surge Brakes, Dual Axle Trailer, Electric Brakes, Single Axle Trailer, Surge Brakes |
