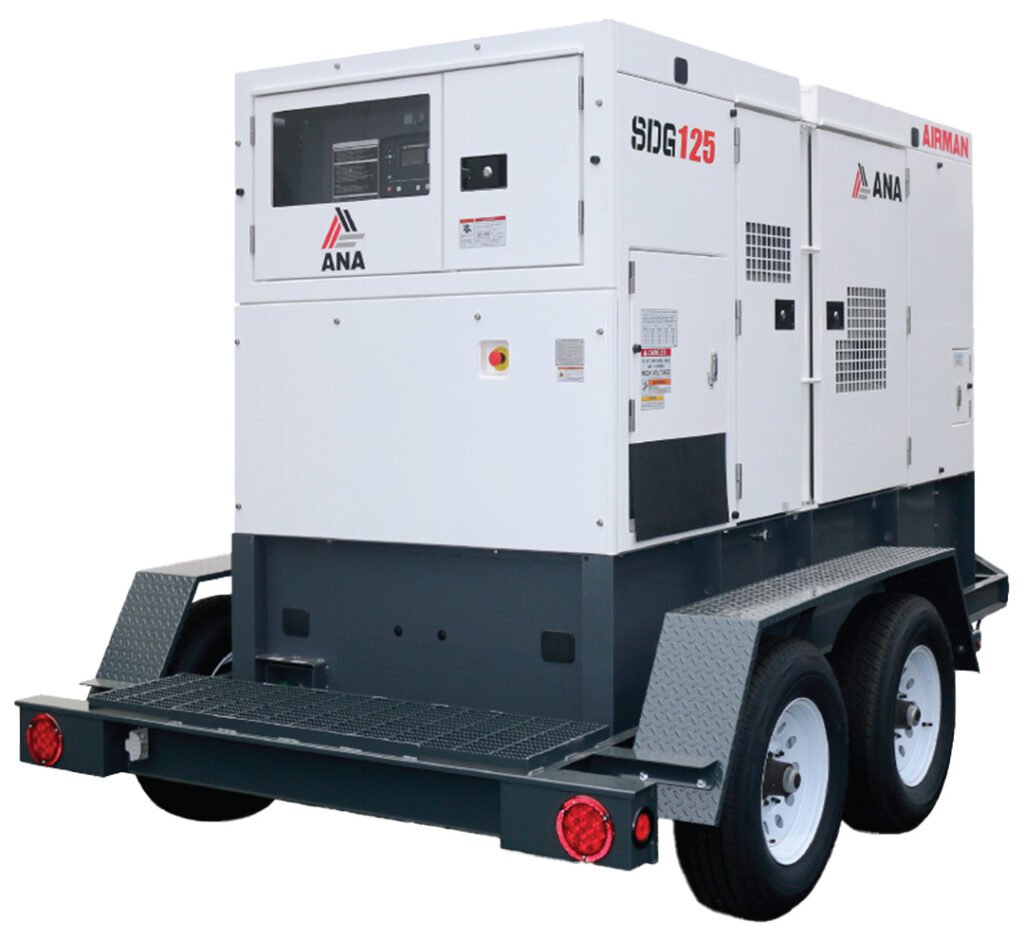

Airman SDG125S Diesel Driven Portable Generator
100 kW / 125 kVA prime power output, 1 or 3 phase voltage, Isuzu BR-4HK1X Diesel engine
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Airman SDG125S Diesel Driven Portable Generator provides 328 amps at three-phase 208V and 300 amps in single-phase 240V. Powered by a 147.9 HP Isuzu engine, this generator ensures 23.3 hours of runtime. Equipped with standard two-way auxiliary fuel tank piping, the SDG125S generator connects to external fuel tanks for extended operation, making it ideal for remote sites and demanding applications.
Overview and Features
Features
- Power output:
- Prime power: 100 kW / 125 kVA
- Standby power: 110 kW / 137.5 kVA
- Voltage:
- 1 phase (switchable): 120V / 127V / 139V / 240V / 254V 277V
- 3 phase (switchable): 208V / 220V / 240V / 416V / 440V/ 480V
- Airman WYE Winding alternator
- 23.3 hrs run time
- Isuzu Isuzu BR-4HK1X 147.9 HP Diesel engine
- 168 gallon fuel tank
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Base mount, S&B Dual Axle Trailer, Surge Brakes, S&B Dual Axle Trailer, Electric Brakes, Dual Axle Trailer, Surge Brakes, Dual Axle Trailer, Electric Brakes |
|---|
