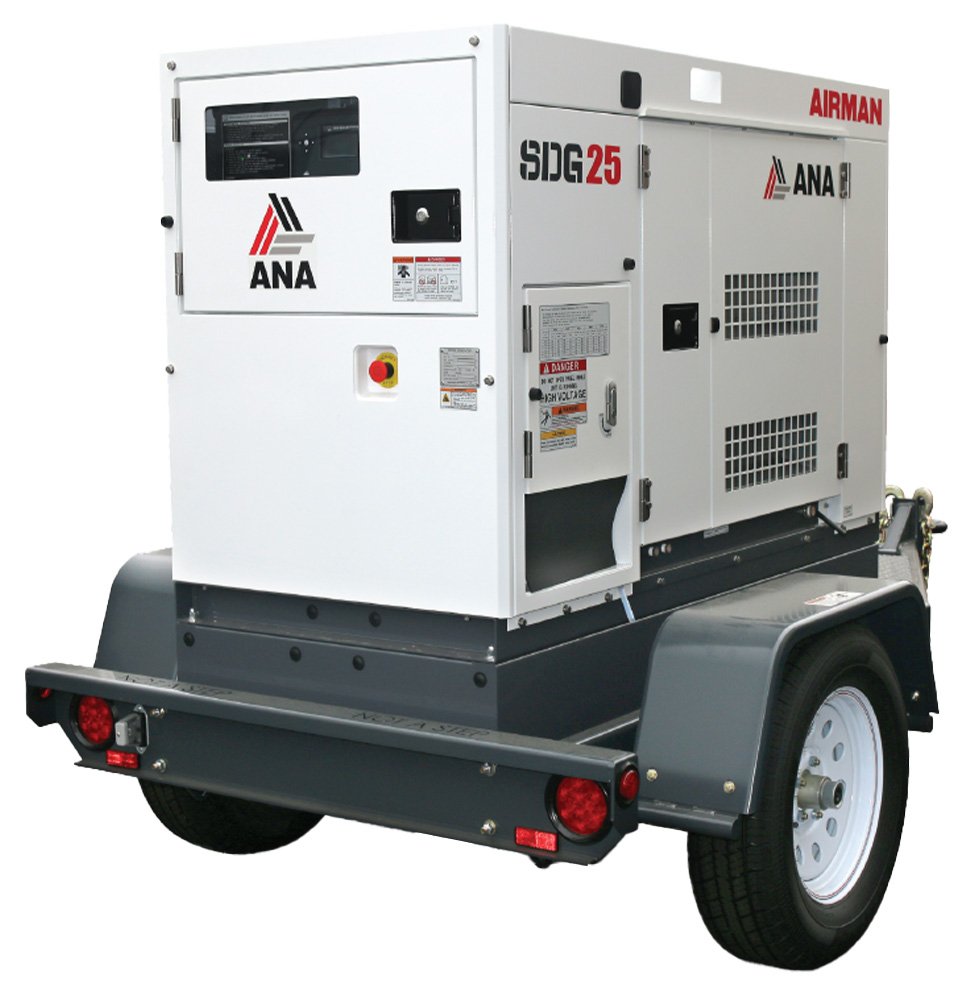

Airman SDG25 Series Diesel Driven Portable Generator
25 kVA prime power output, Isuzu 4LE2T Diesel engine, optional VFD model available
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Airman SDG25 Series Diesel Driven Portable Generator is powered by a Isuzu 4LE2T Diesel engine and provides exceptional performance with over 32 hours of runtime at full load. Delivering 20 kW / 25 kVA of prime power, this generator features auto start as a standard option. The SDG25 includes automatic voltage regulation (+/- 0.5%) and an exterior potentiometer for precise voltage selection.
Available in a Variable Frequency Drive (VFD) model, the VFD allows the 20kW generator to start a 20 HP pump or motor that would typically require a 50 to 55 kW generator, offering significant efficiency and cost savings. The VFD also provides precise control over motor and pump speeds, ensuring versatility while addressing potential light loading issues.
Overview and Features
Features
- Power output:
- Prime power: 20 kW / 25 kVA
- Standby power: 22 kW / 27.5 kVA
- Voltage: SDG25S
- 1 phase (switchable): 120V / 240V / 277V
- 3 phase (switchable): 208V / 240V / 416V / 480V
- Voltage: SDG25SV
- 440 to 480V, 30 to 60 Hz
- Airman WYE Winding alternator
- 32 hrs run time
- Isuzu 4LE2T 33.3 HP Diesel engine
- 51.5 gallon fuel tank
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Model | 25 kVA Generator, 25 kVA VFD Generator (Mitsubishi FR-F800 VFD/Inverter) |
|---|---|
| Configuration | Base mount, Single axle wide GW trailer, no brakes |
