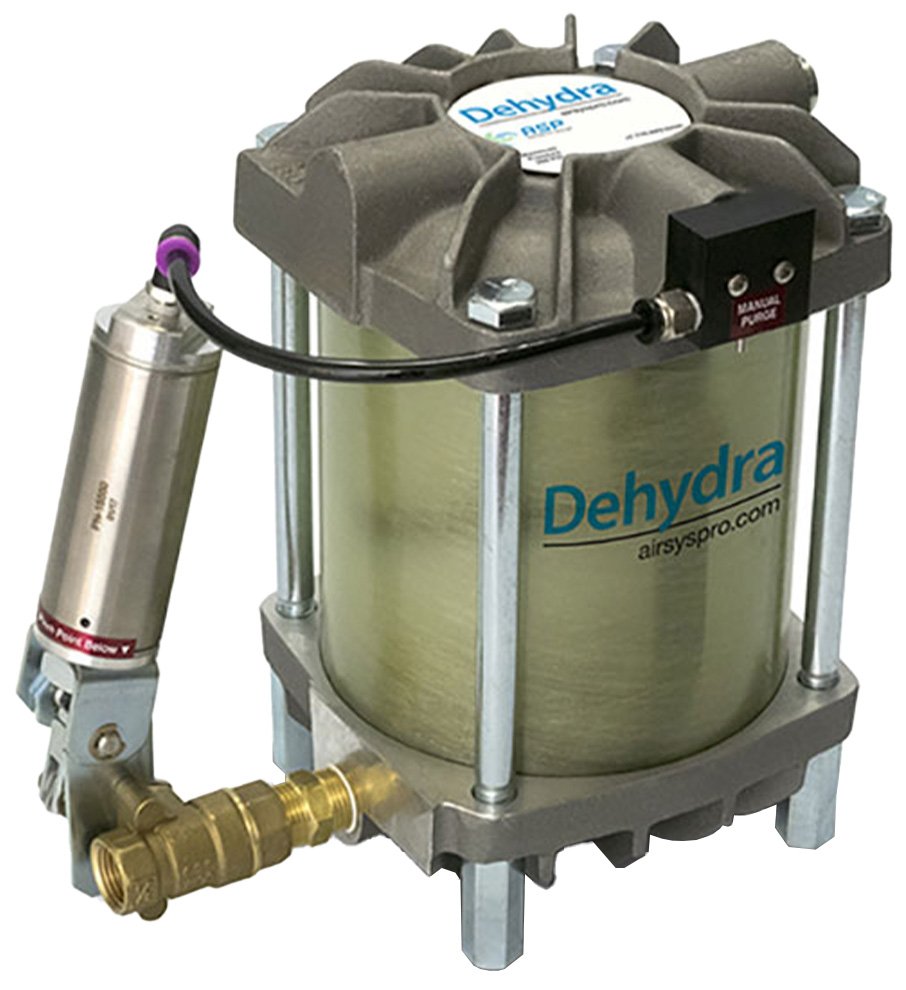

Air System Products Dehydra Zero Loss Drain
Fully automatic turn-key design, zero loss drain that requires no electricity
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Air System Products Dehydra Zero Loss Drain is designed to be easily installed, making it a convenient choice for various applications. With no need for an external power utility, it offers both flexibility and cost-effectiveness. Maintenance becomes hassle-free, as the absence of strainers eliminates the need for regular cleaning. The incorporation of an easy-to-see condensate level “quick check” feature enhances operational efficiency. The Dehydra design facilitates rapid discharge, safeguarding against potential plugging by contaminants. The Dehydra can be implemented in a variety of applications across various components such as aftercoolers, receivers, dryers, filters, or drip legs.
Overview and Features
Features
- Two 1/2″ NPT inlet connections
- 1/2″ NPT outlet connection
- 250 PSI pressure rating
- 450 PSI option available
- 52 ounces per cycle discharge
- Materials:
- Composite reservoir
- Aluminum heads
- Bronze valve with stainless steel ball and stem
- Poly float
- Viton seal
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Model | Dehydra 52, 250 PSI, Dehydra 52 with Counter, 250 PSI, Dehydra 52 with Stainless Steel Float, 250 PSI, Dehydra 52, HP, 450 PSI |
|---|
