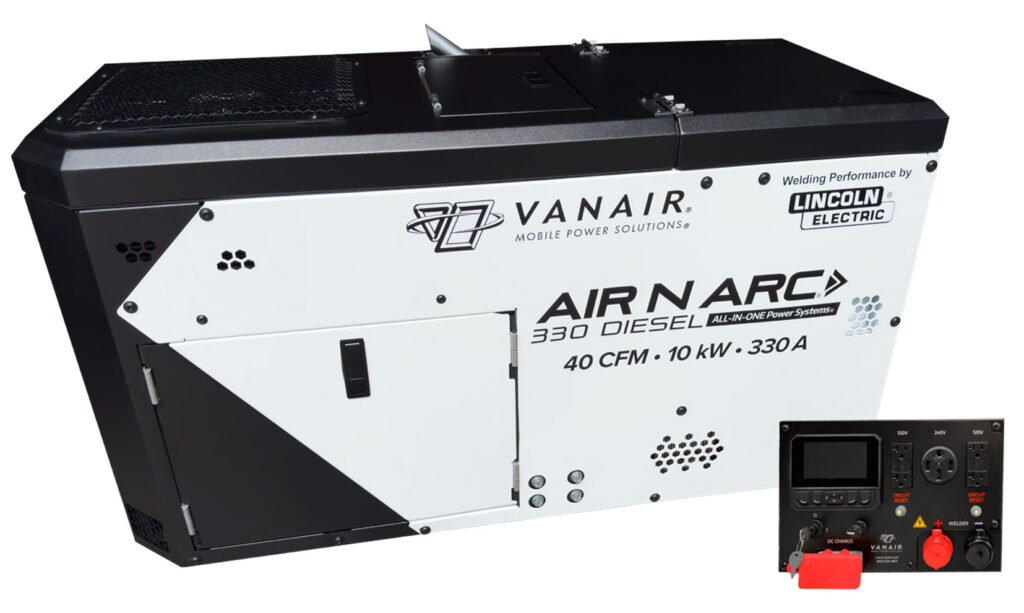

Vanair Air N Arc 330 Diesel Rotary Screw Air Compressor with Generator/Welder
Diesel driven 40 CFM rotary screw air compressor, Lincoln Electric 10kW AC brushed generator, 330 AMP Lincoln Electric DC arc welder
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Vanair Air N Arc 330 Diesel Rotary Screw Air Compressor with Generator/Welder seamlessly integrates air, welding, engine starting, and AC power capabilities to boost productivity, optimize bed space, and reduce weight while ensuring convenience and safety through a single control panel.
Overview and Features
Features
- 24.8 HP Kubota D902-E4B motor
- Air Compressor:
- Rotary Screw
- Belt Drive
- 40 CFM at 150 PSI
- Up to 175 PSI
- Generator:
- Lincoln Electric AC Brushed Generator
- Direct Drive
- 10kW Continuous Output
- 120/240V, 60Hz
- Welder:
- Lincoln Electric DC Multi-Process Arc Welder CC (Stick, Gouging, and TIG): 35-330A, CV (MIG and FCAW): 14-40V
- Battery Boost/Charge:
- Direct Drive
- 330A
- 12V/24V Boost 50A
- 12/24V Charge
- Up to 150A chassis charge back
- 11 gallon fuel capacity with Bolt-On Frame Option
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Welder, Generator, 40 CFM Compressor, Jump Starter, Cold Weather Kit, (Chassis Fuel, Chassis Battery), Welder, Generator, 60 CFM Compressor, Jump Starter, Cold Weather Kit, (Chassis Fuel, Chassis Battery) HIDDEN TEMP |
|---|---|
| Remote Control Panel Harness | None, 6ft connection harness, 10ft connection harness, 14ft connection harness, 18ft connection harness, 22ft connection harness, 26ft connection harness |
| Additional Options | Bolt-On Frame, 10-Gallon Fuel Tank, 4-Gallon Air Tank, and Battery, ELiMENT Battery, 48V 100Ah, BT + Battery Management, ISOHUB (HIDDEN TEMP), Weld Cable Set 25’ 1/0, Weld Cable Set 50’ 1/0, Weld Cable Reel, Manual Rewind with 50’ Leads, 400A, Weld Cable Reel, Spring Forward with 50’ Leads, 400A, Battery Boost Cables 25’ Two Gauge with Quick Connect Ends, Underbody Slide Out Frame, 120V Block Heater, Inverter, 12V, 3kW, Low Frequency, Dual Voltage 120V/240V, Machine Cover, Base Machine Only, Remote Panel, Engine Maintenance Kit for Air N Arc 330 Diesel, Engine Maintenance Kit for Air N Arc 330 Diesel with Bolt-On Frame, 50 Hour Compressor Maintenance Kit, 500 Hour Compressor Maintenance Kit, Replacement Compressor Air Filter Element, Replacement Compressor Oil Filter, Replacement Separator Element |
