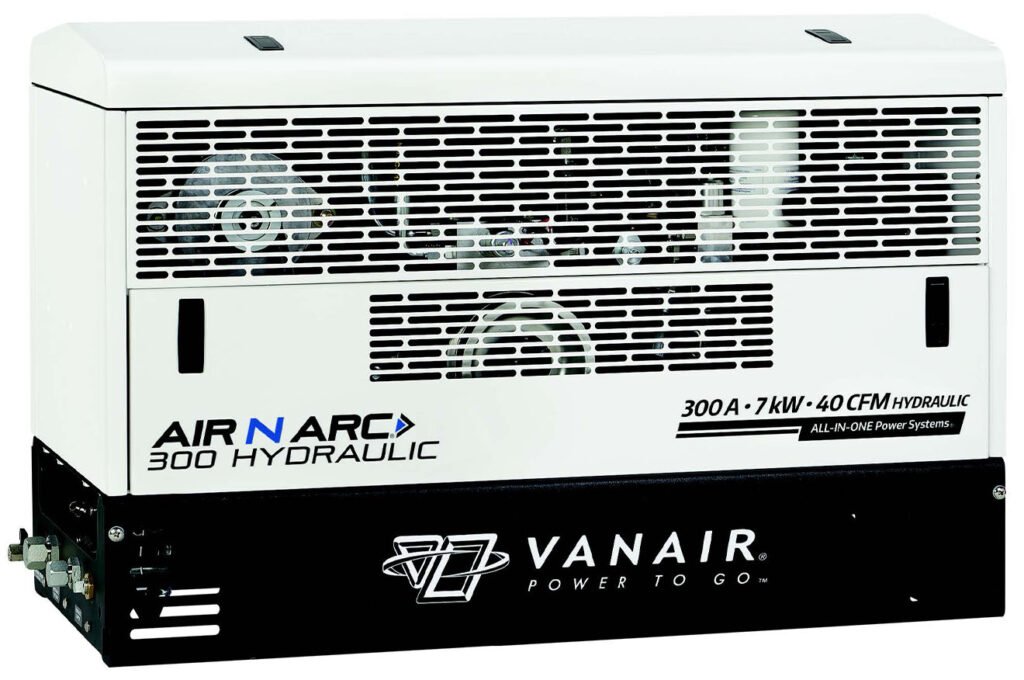

Vanair Air N Arc 300 Hydraulic Rotary Screw Air Compressor with Generator/Welder
Open center hydraulic driven, 40 CFM rotary screw air compressor with 7 kW generator and 300 AMP welder
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Vanair Air N Arc 300 hydraulic rotary screw air compressor with generator and welder has all of the advantages of being hydraulically driven with all of the advantages of a 40 CFM rotary screw air compressor, a 7 kW generator, a 300 AMP welder, a battery booster, and a battery charger all in one unit. Designed as a true two generator system, the Air N Arc 300 Hydraulic allows simultaneous dual functionality. The system offers a small footprint for side pack or behind-the-cab mounting and is ideal for trucks with hydraulics already installed.
Overview and Features
Features
- Hydraulic requirements:
- 19 GPM at 2800 PSI multifunction
- 14.5 GPM at 2500 PSI single function
- Compressor:
- Rotary screw
- 40 CFM at 150 PSI
- 175 PSI max pressure
- Generator:
- 7 kW peak, 4.2 kW continuous
- 60 Hz, single phase
- Two 120V and 240V outlets
- Independent AC generator
- Brushless design
- Welder:
- High Frequency DC Welding
- 270 AMPs at 100% duty cycle
- 40 to 300 AMPs Operating Range
- 15 to 30V range
- Independent DC welder
- Auto speed control
- CV MIG capabilities
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | 12V fuel pump included, no fuel storage, 12 gallon fuel storage included |
|---|---|
| Horsepower | 25 HP |
| Capacity | 40 CFM at 150 PSI |
| Remote Control Panel Harness | 6ft connection harness, 10ft connection harness, 14ft connection harness, 18ft connection harness, 22ft connection harness, 26ft connection harness |
| Weld Cable Set | None, 25ft 1/0, 50ft 1/0 |
| Weld Cable Reel | None, Spring forward with 50ft leads, 400 AMP |
| Battery Boost Cables | None, 25ft, 2GA with quick connect ends |
