BOSS Industries Infinity 185 Hydraulic Rotary Screw Air Compressor

Above deck, direct drive rotary screw air compressor with a continuous output up to 185 CFM at 110 PSIG

Engine Driven Air CompressorsHydraulic Air CompressorsPrice on request

Request a tailored quote

Tell our team about your pressure, flow, voltage, and installation requirements.

Product overview

Built around your operating requirements.

Description

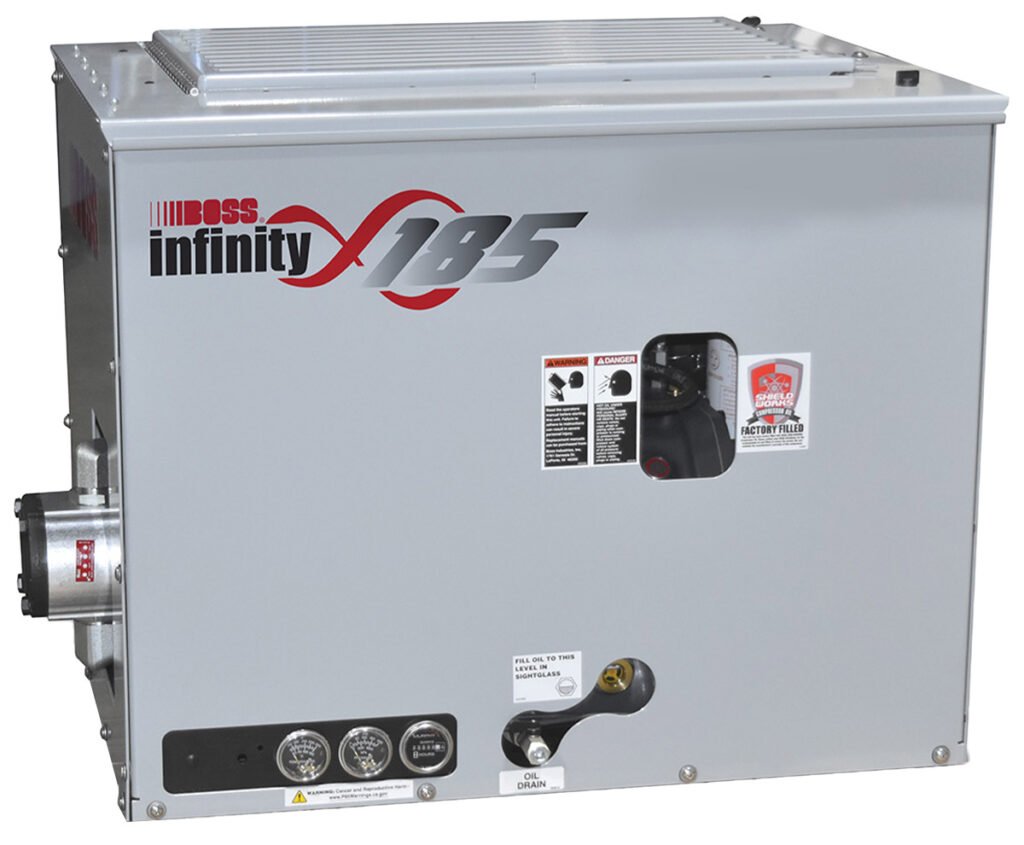

The BOSS Industries Infinity 185 hydraulic rotary screw air compressor design allows you the option to choose any CFM output up to 185 CFM. By simply adjusting the flow, the compressor system will produce 185 CFM at 110 PSIG continuously. The Infinity 185 includes all of the major components for your system. This includes an integrated compressor oil cooling package, hydraulic motor directly coupled to geared airend, self-contained separator element, hour meter, compressor lubricant temperature gauge, air pressure gauge, and a receiver tank with filler port and drain valve.

The built-in access panel allows for a majority of the components to be accessible for maintenance and service. Other features such as a spin-on oil compressor oil filter and separator element manifold reduces the time and costs associated with routine maintenance.

Overview and Features

Features

  • 110 PSIG pressure rated
  • Hydraulic requirements: (at 110 PSIG)
    • Delivery 125 CFM: 29.4 GPM
    • Delivery 160 CFM: 38.0 GPM
    • Delivery 185 CFM: 43.8 GPM
  • 12V electrical (24V option available)
  • 2-stage dry type air intake
  • 3 gallon fluid capacity
  • 12 gauge aluminum enclosure
  • 2 year airend warranty

Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.

Available specifications

Voltage12, 24
CanopyWith canopy, Remove canopy
