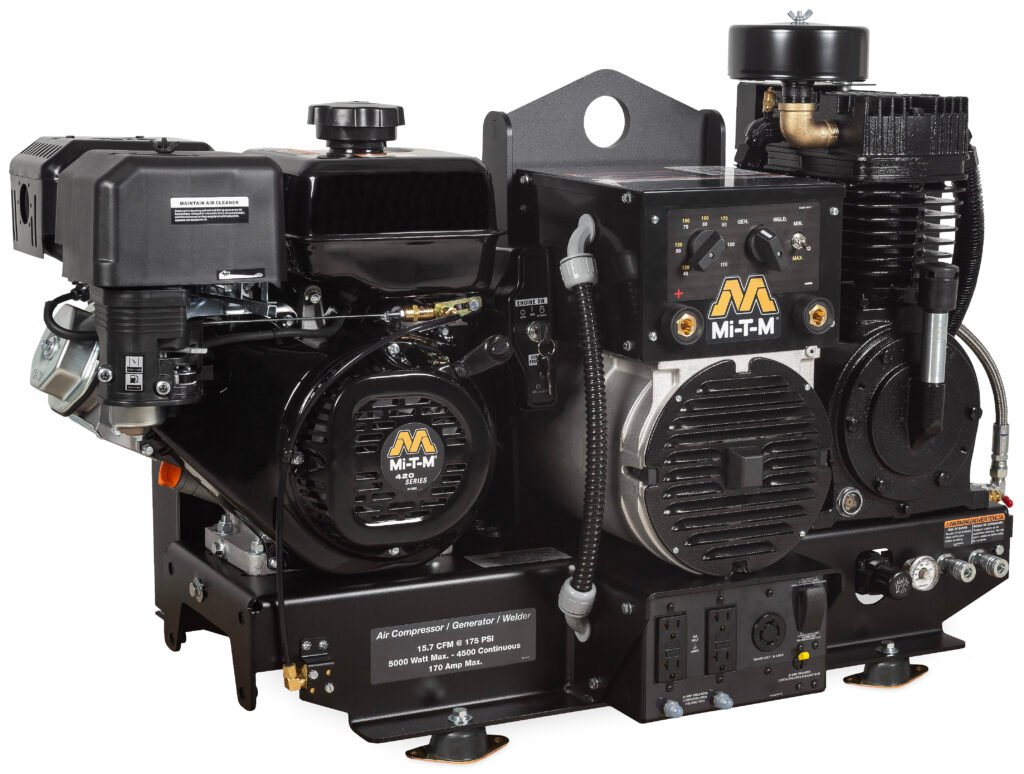

Mi-T-M Base-Mount Two Stage Industrial Air Compressor/Generator/Welder Combo
This AGW Series combines an air compressor, generator and welder into one machine, making it the complete on-site unit to efficiently tackle numerous jobs at once.
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
This AGW Series combines an air compressor, generator and welder into one machine, making it the complete on-site unit to efficiently tackle numerous jobs at once.
AGW Series Operation
Generator Mode
- AC current only
- Selector switch set to idle down
- Switch is set to full throttle
Welder Mode
- DC current only
- Engine must be running full throttle
- Selector switch must be set to full throttle
Overview and Features
Features
- 16.4 CFM @ 90 PSI / 15.7 CFM @ 175 PSI
- Cast iron compressor pump
- Splash lubricated
- Stainless-steel braided discharge hose
- Large canister intake filter
- Oil level sight indicator
- Brush-type 2 pole 120V/240V alternator
- Total harmonic distortion (THD) less than 6%
- 100% copper windings
- Amperage selection switch, 170A or 220A maximum
- Powder coated two-piece belt guard (Four-piece belt guard on AGW-SH22-20M)
- Regulator and two gauges for tank and outlet pressure
- Manual drain valves for proper maintenance
- 16-1/2″ fly wheel
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Engine Type | 420cc Mi-T-M OHV Engine, 408cc Vanguard OHV Engine |
|---|---|
| Electric Start | Yes (Battery and Battery Cables Not Included) |
| Capacity | 16.4 CFM @ 90 PSI / 15.7 CFM @ 175 PSI |
