Mi-T-M

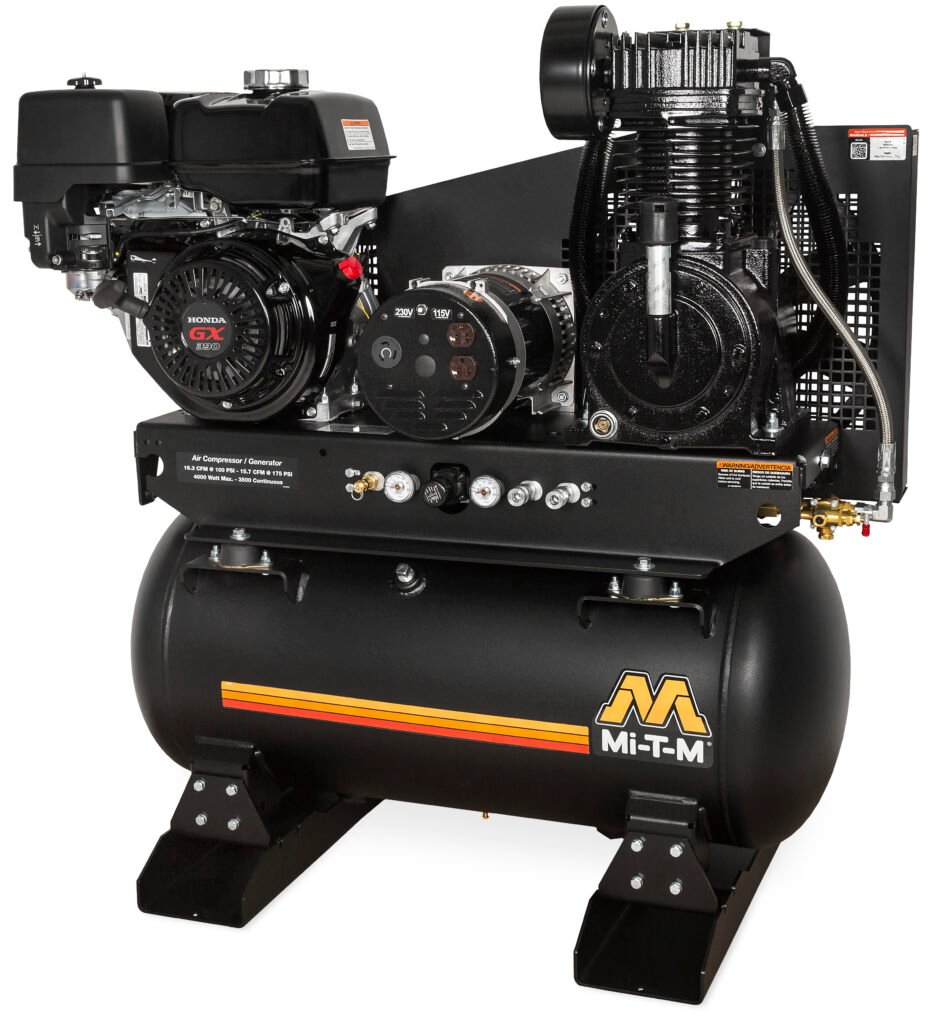

Mi-T-M 30 Gal Two Stage Industrial Air Compressor/Generator Combo
The 30-gallon two stage air compressor/generators tie two units into one for optimal power remodelers, contractors and DIYers appreciate.
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The versatile air compressor and generator combination comes with an abundance of storage capacity and features a powerful two stage compressor and 4000-watt generator.
Overview and Features
Features
- 16.4 CFM @ 90 PSI / 15.7 CFM @ 175 PSI
- Cast iron compressor pump
- Splash lubricated
- Stainless-steel braided discharge hose
- Large canister intake filter
- Oil level sight indicator
- Brushless alternator
- Total harmonic distortion (THD) less than 6%
- 100% copper windings
- (2) NEMA 5-20R 120V, 20A receptacles and (1) NEMA L6-20R 240V, 20A receptacles
- Powder coated ASME receiver tank
- 3/16-inch base plate to reduce vibration
- Powder coated two-piece belt guard
- Regulator and two gauges for tank and outlet pressure
- Manual drain valves for proper maintenance
- 16 ½-inch fly wheel
- Quality pilot valve unloader
- ASME Boiler and Pressure Vessel Code – UM
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Engine Type | 389cc Honda GX390 OHV Engine, 429cc Kohler CH440 OHV Engine, 420cc Mi-T-M OHV Engine, 408cc Vanguard OHV Engine |
|---|---|
| Electric Start Option | No, Yes (Battery, Box, and Cables Not Included) |
| Capacity | 16.4 CFM @ 90 PSI / 15.7 CFM @ 175 PSI |
