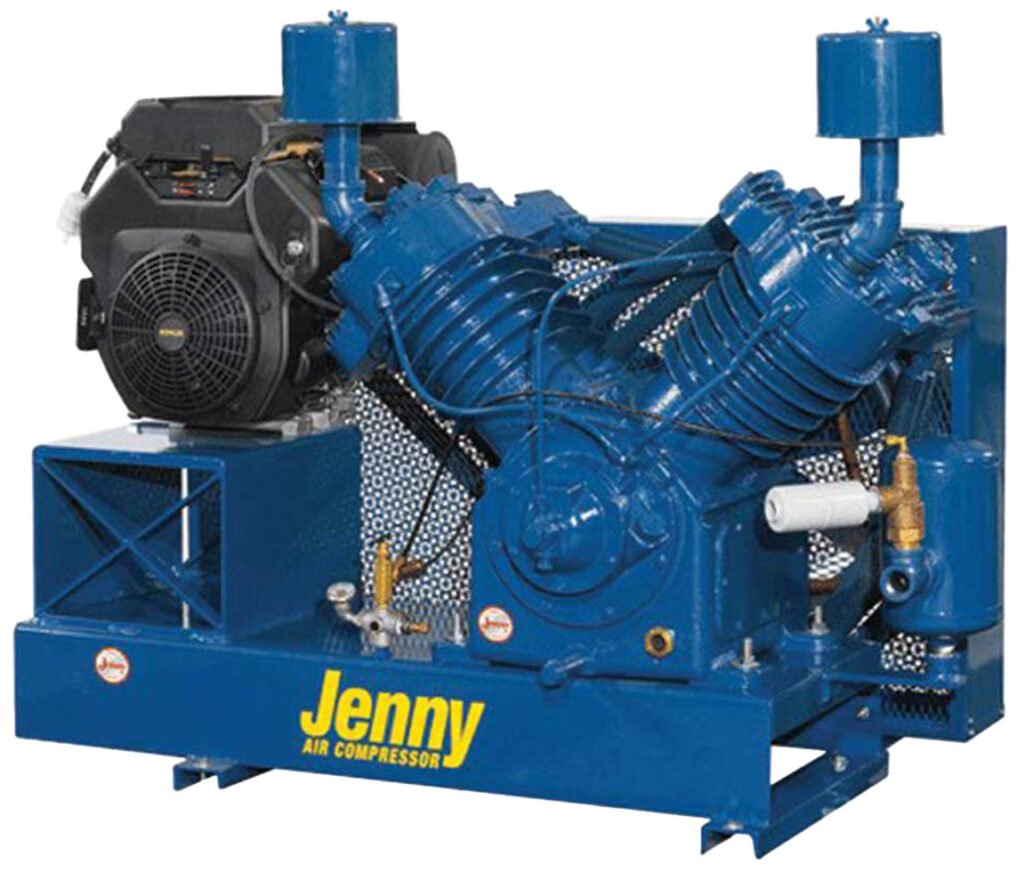

Jenny Two-Stage Base Mounted Gas Piston Air Compressor
Heavy-duty gas powered two-stage cast iron compressor pump with powder coated, extra heavy steel base plate
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Jenny Two-Stage Base Mounted Gas Piston Air Compressor is a Heavy-duty cast iron compressor pump with a powder-coated, extra heavy steel base plate. It is powered by 5.5 to 11 HP Honda gas engines or 18 to 25 HP Kohler gas engines and has capacities of up to 66.5 CFM at 175 PSI. The splash-lubricated pump is belt-driven with a large flywheel for extra cooling and easier start-up. Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil for peak performance.
Overview and Features
Features
- Gas engine options:
- 9 to 13 HP: Honda engine
- 18 to 25 HP: Kohler engine
- 15.4 to 66.5 CFM at 175 PSI
- Splash lubricated
- Belt driven with a large flywheel
- Directional air shroud
- Enclosed heavy-duty belt guard
- Large canister intake filter with replaceable filter elements
- Pressure relief safety valve
- Pressure gauge included
- Auto start/stop control with pressure unloader set at 105 to 125 PSI
- Magnetic starter is included on all 5 HP and larger units
- Filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 9 HP, 11 HP, 13 HP, 18 HP, 25 HP |
|---|---|
| Capacity | 15.4 CFM, 16.3 CFM, 17.6 CFM, 20.8 CFM, 34.7 CFM, 66.5 CFM |
| Pressure | 175 PSI |
