Jenny

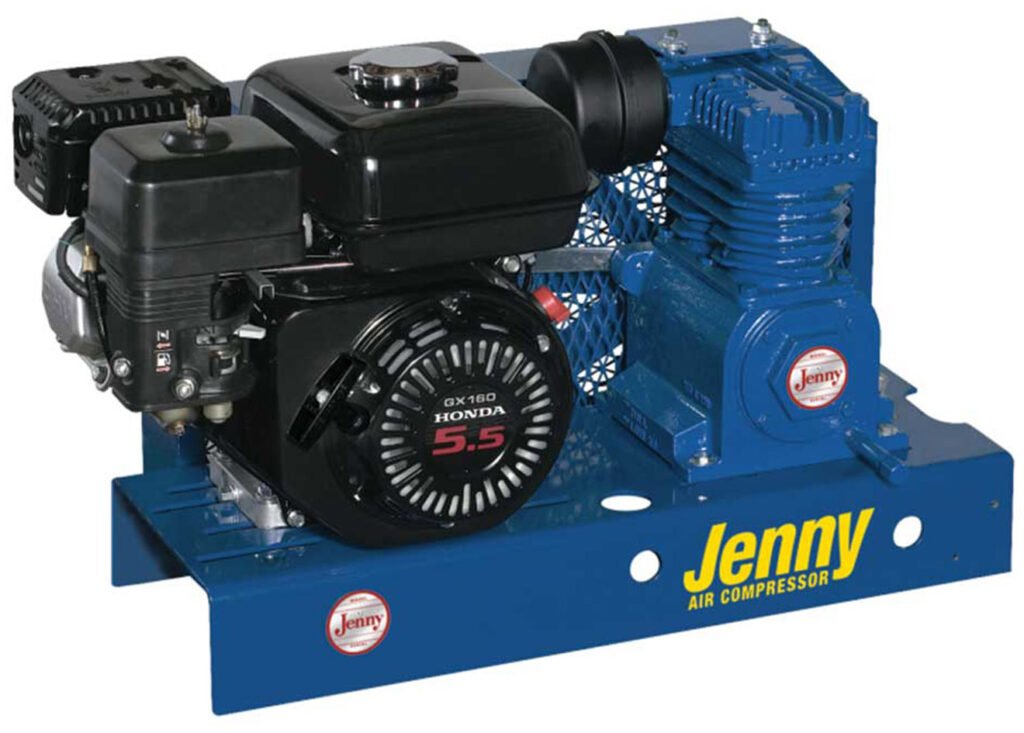

Jenny Single-Stage Base Mounted Gas Piston Air Compressor
Heavy-duty gas powered single-stage cast iron compressor pump with powder coated, extra heavy steel base plate
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Jenny Single-Stage Base Mounted Gas Piston Air Compressor is a Heavy-duty cast iron compressor pump with a powder-coated, extra heavy steel base plate. It is powered by 5.5 to 11 HP Honda gas engines and has capacities of up to 31.8 CFM at 125 PSI. The splash-lubricated pump is belt-driven with a large flywheel for extra cooling and easier start-up. Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil for peak performance.
Overview and Features
Features
- 5.5 to 11 HP options (Honda gas engines)
- 14.2 to 31.8 CFM at 125 PSI
- Splash lubricated
- Belt driven with a large flywheel
- Directional air shroud
- Enclosed heavy-duty belt guard
- Large canister intake filter with replaceable filter elements
- Pressure relief safety valve
- Pressure gauge included
- Auto start/stop control with pressure unloader set at 105 to 125 PSI
- Magnetic starter is included on all 5 HP and larger units
- Filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 5.5 HP, 6.5 HP, 9 HP, 11 HP, 13 HP |
|---|---|
| Capacity | 8.6 CFM, 10.3 CFM, 15.6 CFM, 18.3 CFM, 22.9 CFM, 27.1 CFM |
| Pressure | 125 PSI |
