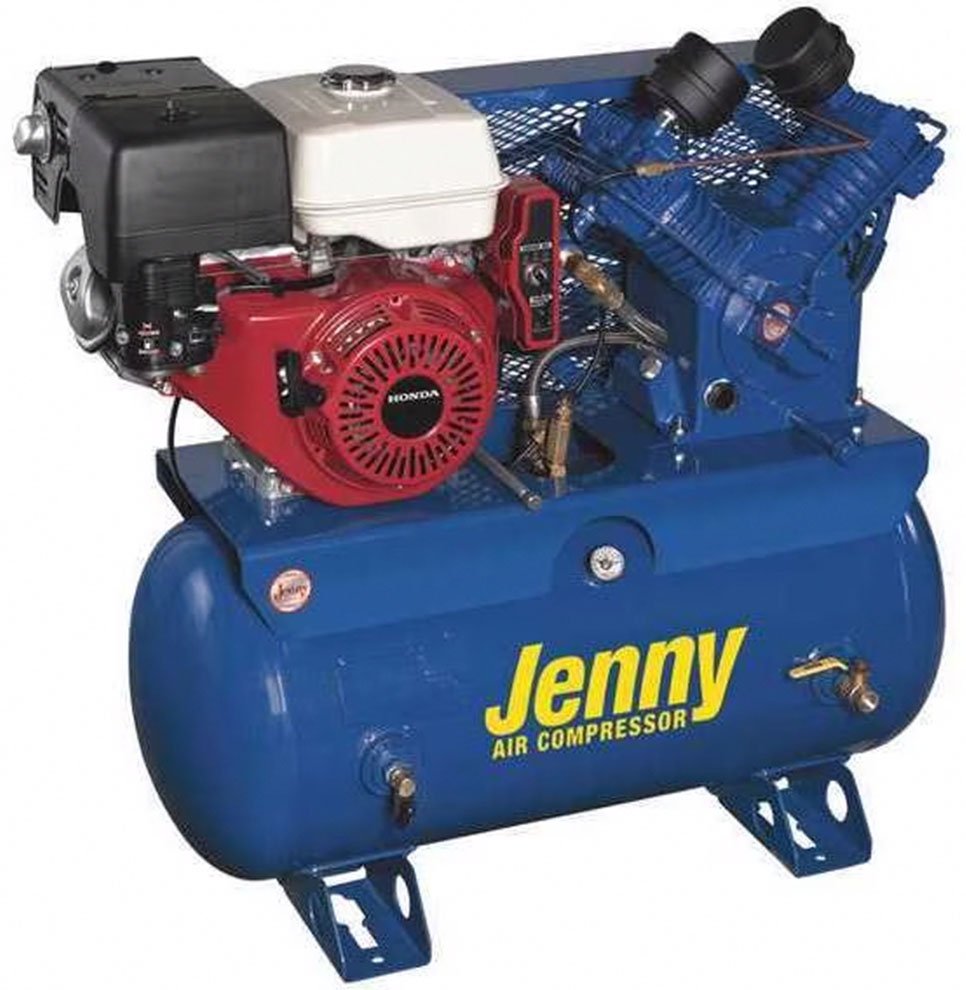

Jenny Single-Stage Service Vehicle Mounted Piston Air Compressor
Heavy-duty compressor with Honda GX gas powered engine and 30 gallon receiver tank
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Jenny Single-Stage Service Vehicle Mounted Piston Air Compressor features a heavy-duty two-stage cast iron compressor pump powered by a Honda GX gas engine. This compressor is available with 5.5 to 23 HP engines with a 150 PSI pressure rating. The compressor is belt-driven with a large flywheel for extra cooling and includes high-quality special unloading valves to assist in engine starting. This compressor is designed, tested, and proven to meet the demands of the construction and rental industry.
Overview and Features
Features
- 5.5 to 13 HP motor options
- Pump:
- 17.9 to 27.1 CFM at 150 PSI
- Splash lubricated
- Belt driven with a large flywheel
- Filled with Jenny Synthetic Blue compressor pump oil
- 30 gallon ASME air receiver tank with gauge
- Constant run control
- Throttle idle control standard
- Oil sight glass
- Large canister intake filter with replaceable filter elements
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 5.5 HP, 6.5 HP, 9 HP, 11 HP, 13 HP |
|---|---|
| Capacity | 7.9 CFM, 9.6 CFM, 14.9 CFM, 17.3 CFM, 22.9 CFM, 27.1 CFM |
| Pressure | 150 PSI |
| Tank Size | 30 gallon |
