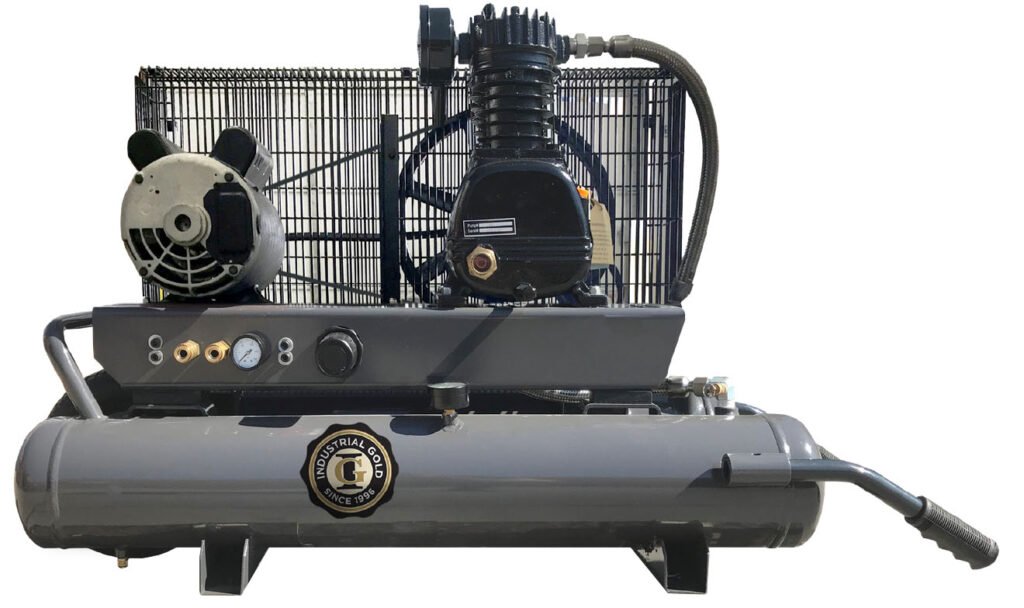

Industrial Gold Contractor Electric Series Piston Air Compressor
2, 3, or 5 HP compressor with twin 10 gallon air tanks or single 20 gallon portable tank. Rated up to 125 PSI
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Industrial Gold Contractor Electric Series piston air compressor is a single stage compressor that delivers a high cfm per HP ratio with a 50% duty cycle (max). The compact design allows for the compressor to be moved around the job site with ease and getting compressed are where you need it.
Overview and Features
Features
- 6 to 16 ACFM capacity range
- Cast iron, low RPM pump
- Swedish steel valve components
- Industrial grade electric motor
- Auto start/stop
- Dual control operation
- Fully enclosed belt guard
- Vibration isolation mounts
- 0.5″ regulator system
- 2-piece quick air connections
- Stainless steel discharge air line
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Tank mount - twin 10 gallon, Tank mount - 20 gallon with wheels |
|---|---|
| Horsepower | 2 HP, 3 HP, 5 HP |
| Capacity | 6 ACFM, 12 ACFM, 16 ACFM |
| Pressure | 125 PSI |
| Voltage | 115, 208-230/1/60 |
| Tank Orientation | Vertical, Horizontal |
