Jenny
Jenny Single-Stage Electric Portable Air Compressor
Heavy-duty single-stage cast iron compressor with 115 or 230V, 1-phase electric motor
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

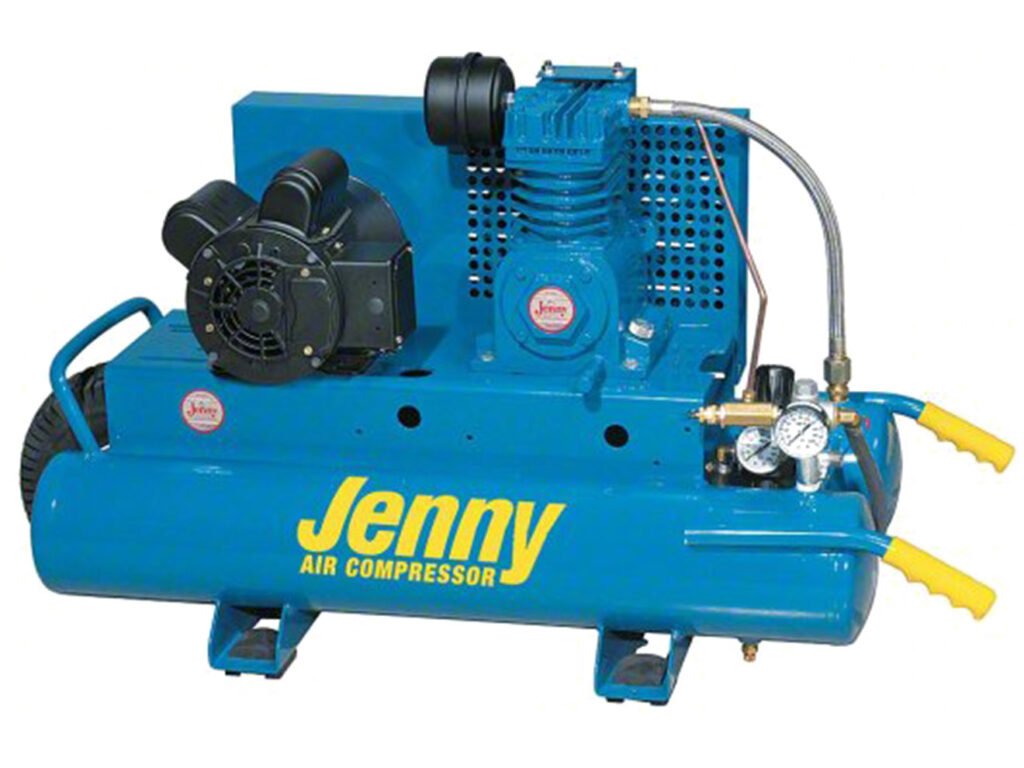

The Jenny Single-Stage Electric Portable Air Compressor is a compact and easy-to-maneuver compressor. Available in 1 to 5 HP options with capacities up to 23 CFM at 125 PSI. The built-in lifting handles and wheels make this compressor in applications where compressed air is needed in spaced where larger systems can’t go.
Overview and Features
Features
- 1 to 5 HP motor options
- Pump:
- 4 to 23 CFM at 125 PSI
- Splash lubricated
- Belt driven with a large flywheel
- Filled with Jenny Synthetic Blue compressor pump oil
- Tanks:
- 8 and15 gallon: low profile, powder-coated twin tank receivers
- 17 and 30 gallon: powder coated and ASME certified
- 6 ft power cord
- Certified to UL 1450
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 1 HP, 1.5 HP, 2 HP, 3 HP, 5 HP |
|---|---|
| Capacity | 4 CFM, 6.2 CFM, 8 CFM, 13.5 CFM, 17.8 CFM, 23 CFM |
| Pressure | 125 PSI |
| Tank Size | 8 gallon, 15 gallon, 17 gallon, 30 gallon |
| Voltage | 115/1/60, 230/1/60 |
