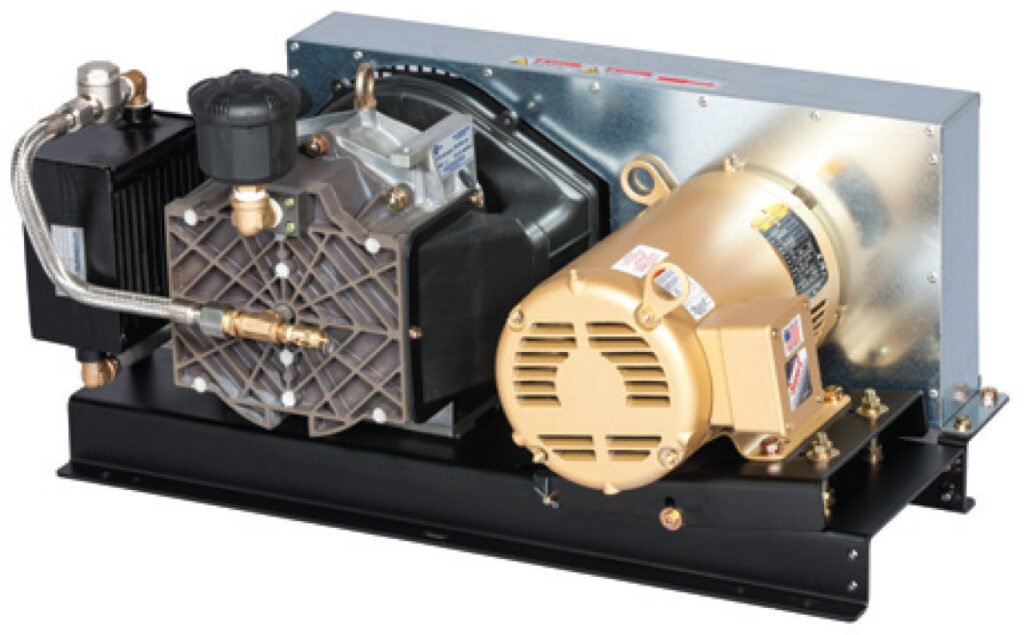

Coaire CSOF-B Series Oilless Scroll Air Compressor
3 or 5 HP base-mounted open-design, vertical or horizontal configurations, 7.2 to 14.1 CFM
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Coaire CSOF-B Series Oilless Scroll Air Compressor features a base-mounted open-design and is available in 3 or 5 HP models. It also features an aluminum compressor body and aftercooler, a pivot-type belt tensioner, and an integral fan for cooling.
Overview and Features
Features
- 3 or 5 HP models
- 115 or 140 PSI options
- Capacities:
- 3 HP: 8.5 CFM at 115 PSI, 7.2 CFM at 140 PSI
- 5 HP: 14.1 CFM at 115 PSI, 12 CFM at 140 PSI
- Aluminum compressor body and aftercooler
- Integral fan
- Pivot-type belt tensioner
- Vertical and horizontal configurations
Tech Specs
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Vertical mount, Horizontal mount |
|---|---|
| Horsepower | 3 HP, 5 HP |
| Capacity | 8.5 CFM, 7.2 CFM, 14.1 CFM, 12 CFM |
| Pressure | 115 PSI, 140 PSI |
| Voltage | 208-230/3/60, 460/3/60, 208-230/1/60 |
