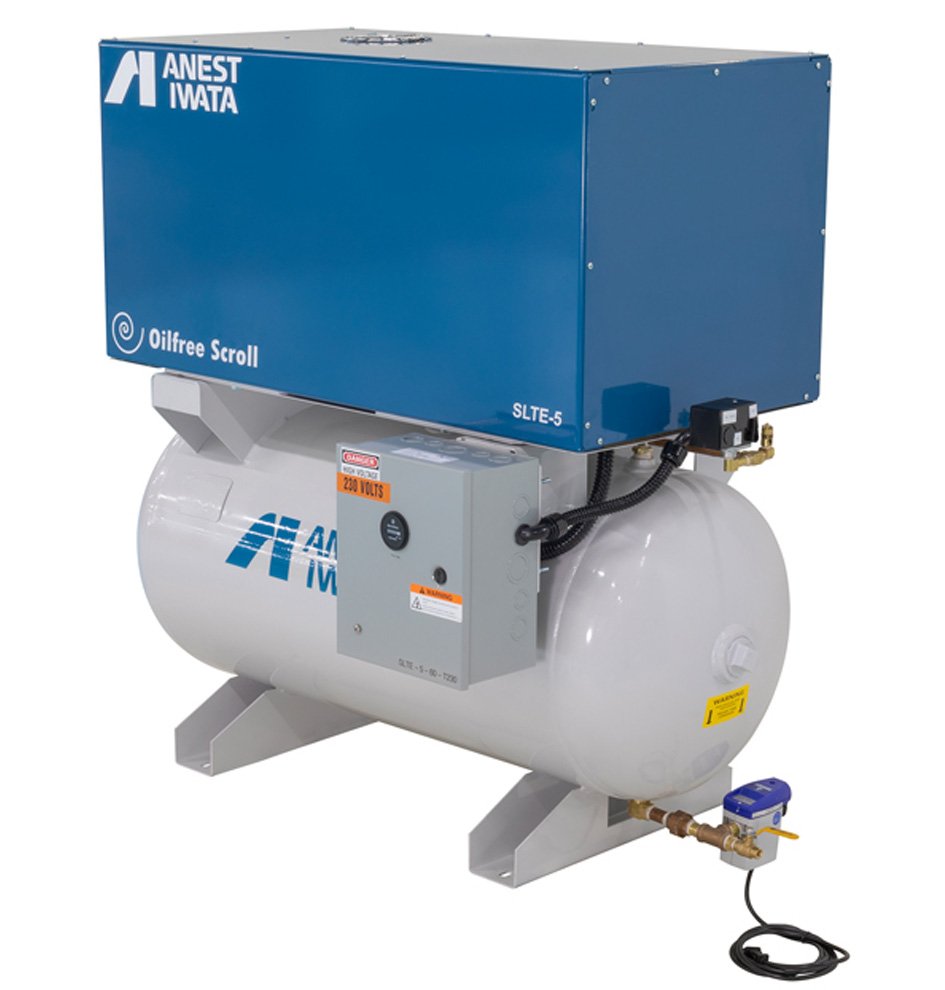

Anest Iwata Model SLTE Oilless Scroll Air Compressor
2 to 20 HP tank mounted enclosed air compressor, 30 to 240 gallon receiver tanks, filter and dryer package options
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Anest Iwata Model SLTE Oilless Scroll Air Compressor is a tank mounted, enclosed-type compressor that is available in simplex and duplex configurations. It provides clean, 100% oil-free air with minimal maintenance requirements. Additional options include a 0.3 micron filter, Bekomat Membrane Dryer or Refrigerated Dryer, 145 PSI pressure option, 3 or 1-phase voltages, and different capacity air receiver tanks.
Overview and Features
Features
- 2 to 20 HP models
- 30, 60, 80, 120, or 240 receiver tank options (depending on model selected)
- 115 and 145 PSI options
- Auto drain included
- Filter and air dryer packages available
- 0.3 micron filter
- Bekomat Membrane Dryer, Refrigerated Dryer, or Desiccant Dryer
- Auto-drain sensor included with Refrigerated Dryer
- 208/230/460 3-phase volatge options
- 1-phase options available for 2 to 5 HP models
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, 4 HP (2 HP Duplex), 6 HP (3 HP Duplex), 10 HP (5 HP Duplex), 15 HP (7.5 HP Duplex), 20 HP (10 HP Duplex) |
|---|---|
| Pressure | 115 PSI, 145 PSI |
| Filter / Dryer Package | None, Add filter and membrane dryer package, Add filter and refrigerated air dryer package, Add filter and desiccant air dryer package |
| Tank Size | 30 gallon, 60 gallon, 80 gallon, 120 gallon, 240 gallon |
| Voltage | 208/3/60, 230/3/60, 460/3/60, 115/1/60, 208/1/60, 230/1/60 |
