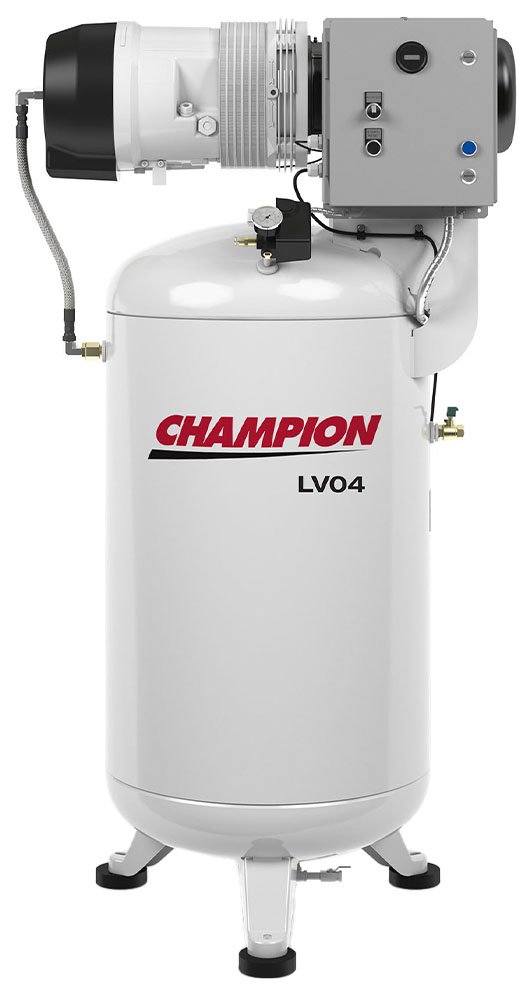

Champion LV-Series Rotary Vane Air Compressor
Oil lubricated unenclosed fixed speed rotary vane compressor rated up to 150psi and up to 100,000+ operating hours
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Champion LV-Series rotary vane air compressor is a compact, simple, robust, and integrated design allows it to fit anywhere undercover. It delivers quality pulse free air with automatic regulation while air intake modulation produces only the air required.
The LV-Series is easy to maintain and install, and are extremely quiet. Available as either a simplex compressor with 80 gallon vertical receiver tank, or as a duplex compressor with 120 gallon horizontal receiver tank.
The LV-Series is designed for a wide variety of applications including automobile, car body shops, wood working, dentistry, laundry, packaging and machine tools.
Overview and Features
Features
- 5 HP pump
- TEFC Motor
- 100% Duty Cycle
- Slow Speed: 1760 rpm (60Hz)
- Less than 3 ppm Oil Carryover
- Tank mounted (80 gallon vertical or 120 gallon horizontal
- HOA switch and hour meter
- Continuous Run or Start/Stop
- Direct Drive
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 2 HP, 5 HP, 10 HP (two 5 HP pumps) |
|---|---|
| Capacity | 6.3 CFM, 4.5 CFM, 19.5 CFM, 16 CFM, 39 CFM, 32 CFM |
| Pressure | 100 PSI, 150 PSI |
| Configuration | Airend and Motor Only - No Starter, Tripod Unit with Starter (shipped loose), Vertical Tank Mount - 80 gallon, Horizontal Tank Mount - 80 gallon, Horizontal Tank Mount - 120 gallon |
| Voltage | 208/3/60, 230/3/60, 460/3/60, 575/3/60, 115/1/60, 208-230/1/60 |
| Auto Tank Drain | None, Add auto tank drain |
| Vibration Isolators | None, Add vibration isolators |
| 10 Year Premium Warranty Kit | None, Add 10 Year Premium Warranty Kit |
