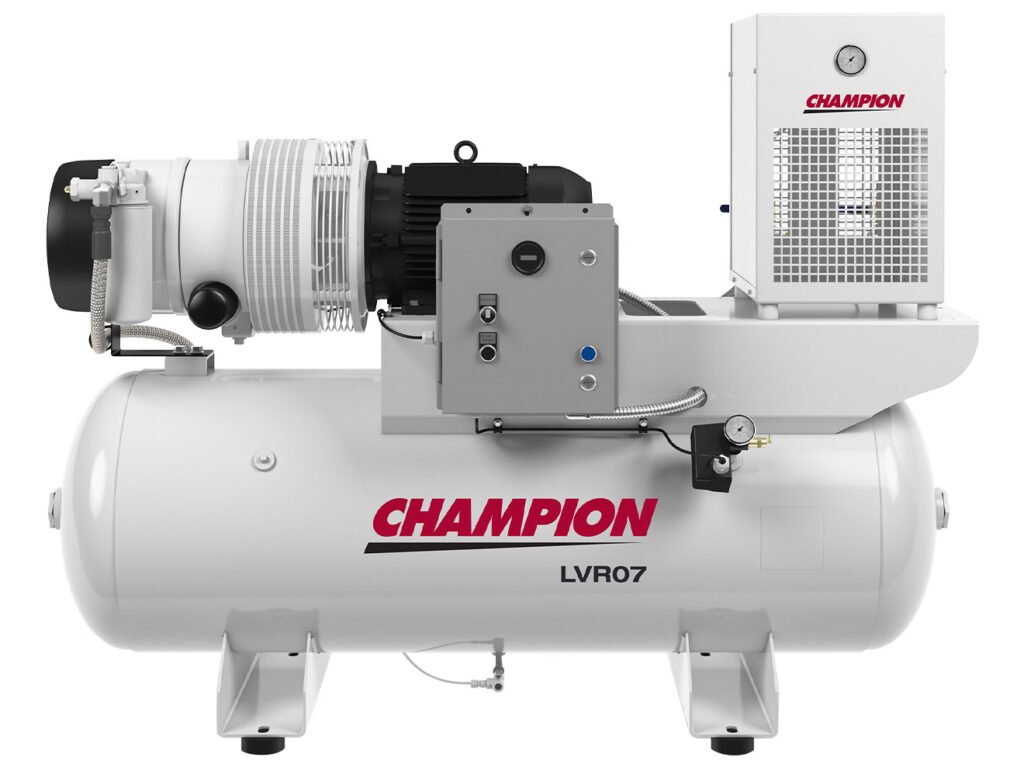

Champion LVR-Series Rotary Vane Air Compressor
7.5 to 20 HP compressor, 22.2 to 72.8 CFM, simplex or duplex configurations available
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Champion LVR-Series Rotary Vane Air Compressor is an unenclosed fixed speed rotary vane compressor with a compact design. The LVR-Series is designed for applications including automobile, car body shops, woodworking, dentistry, laundry, packaging, and machine tools.
Overview and Features
Features
- Horsepower options:
- Simplex: 7.5 and 10 HP
- Duplex: 15 and 20 HP
- Less than 3 ppm Oil Carryover
- HOA switch and hour meter
- 1760 rpm (60 Hz)
- 100% Duty Cycle
- Continuous Run or Start/Stop
- TEFC Motor
- Direct Drive
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 7.5 HP, 15 HP (two 7.5 HP motors), 10 HP, 20 HP (two 10 HP motors) |
|---|---|
| Capacity | 26.3 CFM, 22.2 CFM, 52.6 CFM, 44.4 CFM, 36.4 CFM, 28.7 CFM, 72.8 CFM, 57.4 CFM |
| Pressure | 100 PSI, 150 PSI |
| Configuration | Airend and Motor Only - No Starter, Vertical Tank Mount - 80 Gallon, Horizontal Tank Mount - 80 Gallon, Horizontal Tank Mount - 120 Gallon, Duplex Horizontal Tank Mount - 120 Gallon |
| Voltage | 208/3/60, 230/3/60, 460/3/60, 575/3/60, 208-230/1/60 |
| Auto Tank Drain | None, Add auto tank drain |
| Vibration Isolators | None, Add vibration isolators |
| 10 Year Premium Warranty Kit | None, Add 10 Year Premium Warranty Kit |
