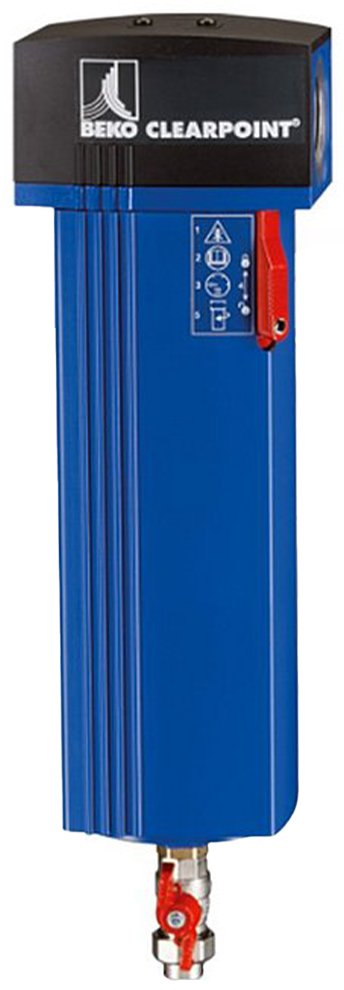

BEKO Technologies CLEARPOINT Threaded Activated Carbon Cartridge Filter
Oil vapor removal filter with manual ball valve, 29 to 118 SCFM flow rates
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The BEKO Technologies CLEARPOINT Threaded Activated Carbon Cartridge Filter is designed to efficiently remove solid particles as small as 1 μm and residual oil vapor content down to .003 mg/m3. To ensure optimal performance, it requires a maximum inlet moisture of 30% and should be installed upstream of a dryer. With a maximum operating pressure of 232 PSIG and a maximum operating temperature of 140°F, this filter element is suitable for a wide range of industrial applications.
Overview and Features
Features
- Activated carbon cartridge type filter element
- 30% max inlet moisture (dryer required upstream)
- 232 PSIG max operating pressure:
- 140°F max operating temperature:
- Removal of solid particles up to 1 μm
- Residual oil vapor content down to .003 mg/m3
- CRN approved
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 29 SCFM, 59 SCFM, 118 SCFM |
|---|---|
| Connection Size | 1/2" NPT, 1" NPT, 1.5" NPT |
