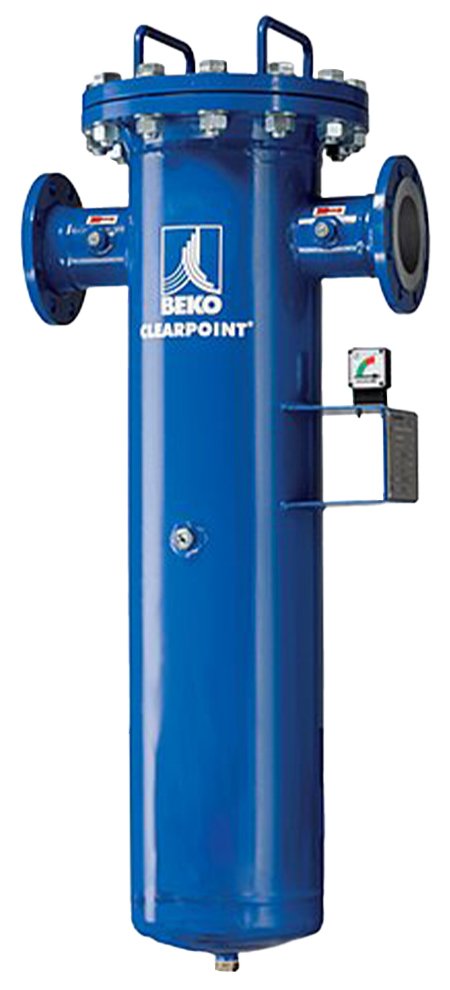

BEKO Technologies CLEARPOINT Flanged Coalescing and Particulate Filter
Large capacity filter with 4 to 12" ASME flange connections
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The BEKO Technologies CLEARPOINT Flanged Coalescing and Particulate Filter comes in 4 filter grades and removes contaminants, as well as humidity and oil from the compressed air stream.
Overview and Features
Features
- 1900 to 21000 SCFM capacity
- 232 PSIG pressure rating
- 140°F maximum operating temperature
- Filter grades:
- A: Activated carbon, .01 μm
- CX: Coarse, 25 μm
- FX: Fine, 1 μm
- SX: Superfine, .01 μm
- Powder coated carbon steel housing
- BEKOMAT drain as standard
- Validated in accordance with ISO 12500
- Designed according to ASME Sec. VIII, Div. 1
- UM stamp
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 1900 SCFM, 2800 SCFM, 3800 SCFM, 6500 SCFM, 7500 SCFM, 9300 SCFM, 13000 SCFM, 21000 SCFM |
|---|---|
| Filter Grade | Activated Carbon, .01 µm, Coarse, 25 µm, Fine, 1 µm, Superfine, .01 µm |
| Connection Size | 4" flange, 6" flange, 8" flange, 10" flange, 12" flange |
| Differential Pressure Gauge | None, Add differential pressure gauge |
| Drain | Manual drain, BEKOMAT and connection kit |
