Applied System Technologies

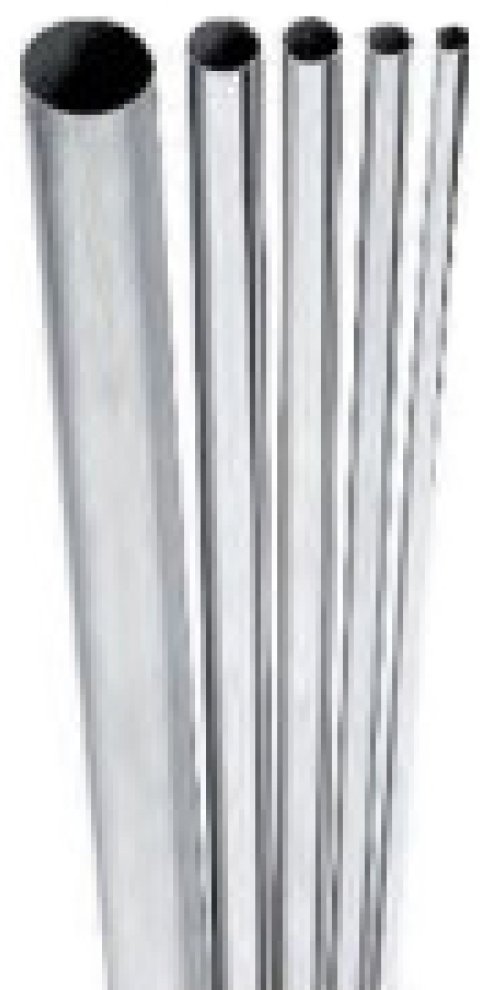

Applied System Technologies TruPress 304 Stainless Steel Air Piping
15 to 168mm sizes, 6m lengths, annealed 304 Stainless Steel
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Applied System Technologies TruPress 304 Stainless Steel Air Piping is joined together by connectors that are mechanically pressed (crimped) onto the pipe to make a permanent connection. AISI 304L is a low-carbon austenitic stainless steel that offers good general corrosion and oxidation resistance, strong formability, and a cost-effective solution for sanitary and general process applications where chloride exposure is limited.
Applications:
- Compressed air
- Nitrogen
- Argon
- Inert gas
- Saturated steam
- Vacuum
- Drinking water
- Heating
- Extinguishing water
- Sprinkler systems
- Cooling
- Solar
Overview and Features
Features
- 15 to 168mm pipe diameters
- 6m lengths
- AISI 304L Stainless Steel
- 232 PSI max pressure
- 432°F max temperature
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Size | 15mm, 22mm, 28mm, 42mm, 54mm, 76mm, 88mm, 108mm, 168mm |
|---|
