Applied System Technologies SynergAir Air Piping Garage Kit
One, two, or three bay kits fully configured piping system with pre-sized aluminum tubing, fittings, and drops
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

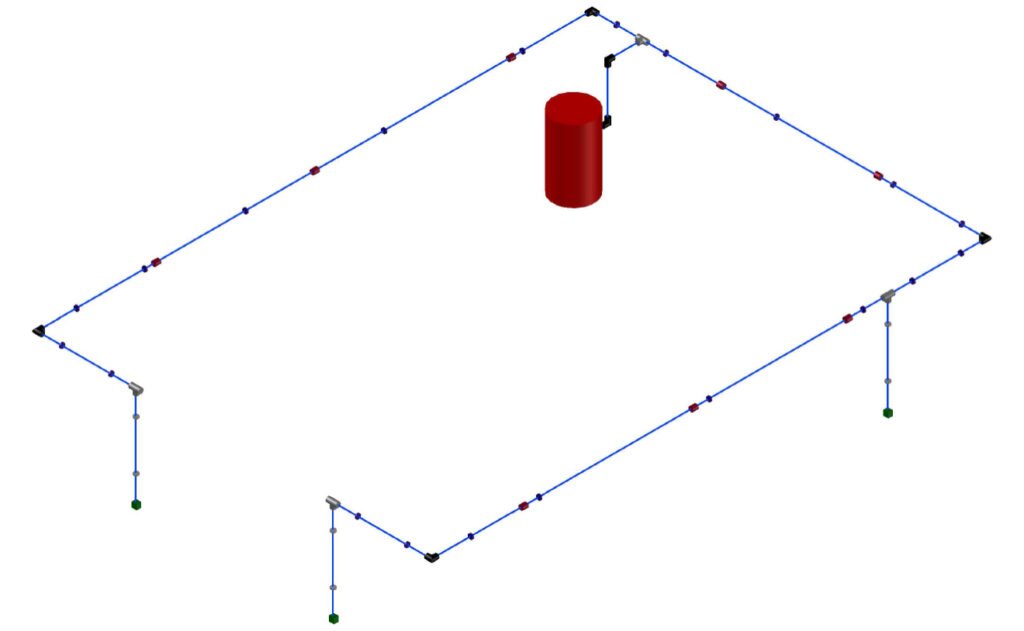

The Applied System Technologies SynergAir Air Piping Garage Kit delivers a fully configured piping system with pre-sized aluminum tubing, fittings, and drops, eliminating guesswork and reducing installation time. Designed for a typical one-bay, two-bay or three- bay shop, it provides clean, efficient airflow with a professional layout that maximizes accessibility and reliability
Overview and Features
Features
- One Bay Kit:
- (3x) 15mm Alum Pipe (8ft)
- (6x) 15mm Pipe Clip
- (3x) 22mm x 15mm Reducing Tee
- (3x) 15mm Brass Wingback Elb x 1/2″ NPT Fem
- (10x) 22mm Alum Pipe (8ft)
- (20x) 22mm Pipe Clip
- (6x) 22mm Union Elbow
- (1x) Brass Male Stem Adapt, 22mm x 3/4″ NPT
- (1x) 22mm Union Tee
- (8x) 22mm Union Connector
- (2x) 22mm End Stop
- Two Bay Kit:
- (4x) 15mm Alum Pipe (8ft)
- (8x) 15mm Pipe Clip
- (4x) 22mm x 15mm Reducing Tee
- (4x) 15mm Brass Wingback Elb x 1/2″ NPT Fem
- (12x) 22mm Alum Pipe (8ft)
- (24x) 22mm Pipe Clip
- (8x) 22mm Union Elbow
- (2x) Brass Male Stem Adapt, 22mm x 3/4″ NPT
- (1x) 22mm Union Tee
- (12x) 22mm Union Connector
- (4x) 22mm End Stop
- Three Bay Kit:
- (5x) 15mm Alum Pipe (8ft)
- (10x) 15mm Pipe Clip
- (5x) 22mm x 15mm Reducing Tee
- (5x) 15mm Brass Wingback Elb x 1/2″ NPT Fem
- (14x) 22mm Alum Pipe (8ft)
- (28x) 22mm Pipe Clip
- (6x) 22mm Union Elbow
- (1x) Brass Male Stem Adapt, 22mm x 3/4″ NPT
- (1x) 22mm Union Tee
- (12x) 22mm Union Connector
- (2x) 22mm End Stop
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Kit | One Bay (15' x 25'), Two Bay (30' x 25'), Three Bay (45' x 25') |
|---|
