Altec AIR Refrigerated Air Dryer Filter Kit
Complete filter kits designed for use with the Altec AIR RAD Series, UA Series, and DX Series Refrigerated Air Dryers
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Altec AIR Refrigerated Air Dryer Filter Kit is a complete compressed air filter kit that takes the guesswork out of which filters are needed to protect your specific Altec AIR air dryer and any downstream processes from contaminants found in the air supply. These Kits are matched to specific Altec AIR refrigerated air dryers in flow, performance, and connection size to ensure the protection matches the requirements of the incoming compressed air as well as the outgoing air.
Kit Contents:

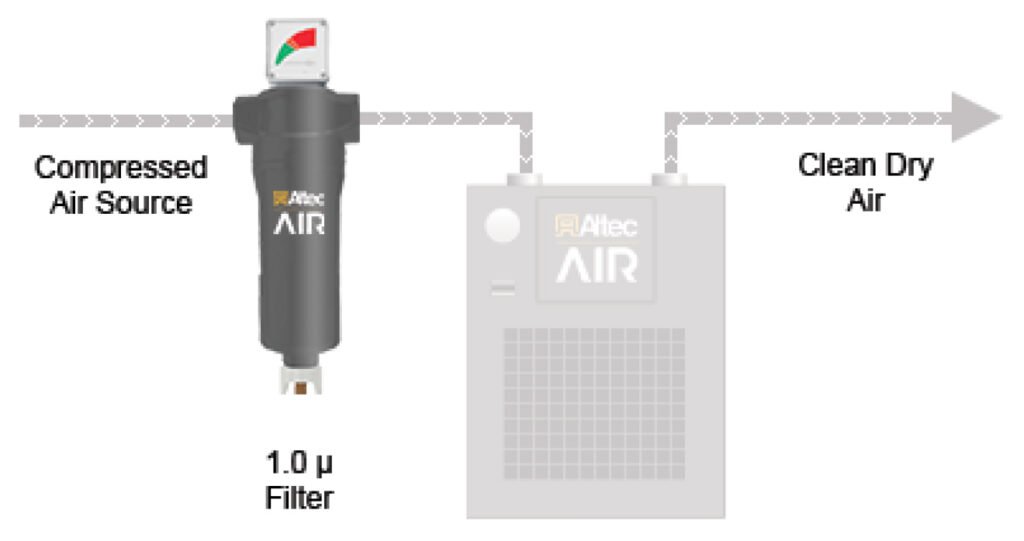

1 pre-filter kit:
- X1 grade – 1 micron coalescing filter
1 pre-filter and 1 after-filter kit:
- X1 grade – 1 micron coalescing pre-filter
- XA grade – 0.01 micron coalescing after-filter
2 pre-filters and 1 after-filter kit:
- X5 grade – 5 micron coalescing pre-filter
- X1 grade – 1 micron coalescing pre-filter
- XA grade – 0.01 micron coalescing after-filter
Overview and Features
Features
- 1/2” to 3” NPT and 4” flange connection size range
- Differential pressure indicators included:
- Pop-up indicators on AR10-0025
- Gauge indicators on AR10-0040 thru AR10-2000
- Automatic float drains
- Three different kits available:
- 1 pre-filter
- 1 pre-filter and 1 after-filter
- 2 pre-filters and 1 after-filter
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Kit Type | 1 pre-filter, 1 pre-filter and 1 after-filter, 2 pre-filters and 1 after-filter |
|---|---|
| Air Dryer Model | RAD-0025A or UA25A, RAD-0040A or UA40A, RAD-0055A or UA55A, RAD-0075A or UA75A, RAD-0100A or UA100A, RAD-0150A or UA150A, RAD-0200A or UA200A, RAD-0250A or UA250A, RAD-0300A or UA300A, UA400A or DX400A, UA500A or DX500A, UA625A or DX625A, UA800A or DX800A, UA1000A or DX1000A, UA1200A or DX1200A, UA1600A or DX1600A, UA2000A or DX2000A |
| Filter Rated Capacity | 50 SCFM, 85 SCFM, 105 SCFM, 320 SCFM, 450 SCFM, 700 SCFM, 900 SCFM, 1250 SCFM, 1800 SCFM, 2500 SCFM |
| Connection Size | 1/2" NPT, 3/4" NPT, 1" NPT, 1.5" NPT, 2" NPT, 3" NPT, 4" flange |
