Altec AIR Desiccant Air Dryer Filter Kit
Complete filter kits designed for use with the Altec AIR MDH Series, VSA Series, and HR Series Desiccant Air Dryers
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Altec AIR Desiccant Air Dryer Filter Kit is a complete compressed air filter kit that takes the guesswork out of which filters are needed to protect your specific Altec AIR air dryer and any downstream processes from contaminants found in the air supply. These kits are matched to specific Altec AIR desiccant air dryers in flow, performance, and connection size to ensure the protection matches the requirements of the incoming compressed air as well as the outgoing air.
Kit Contents:

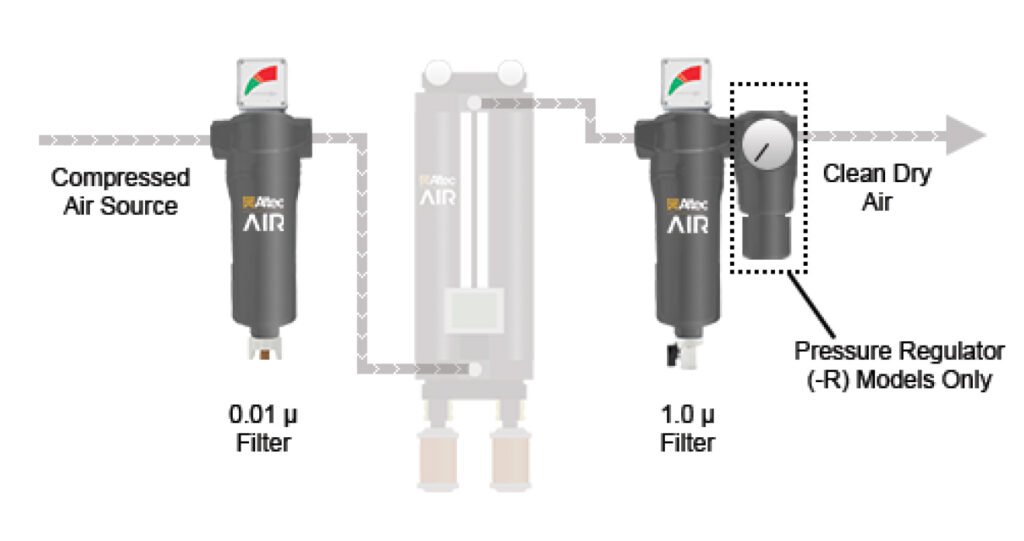

1 pre-filter and 1 after-filter kit:
- XA grade – 0.01 micron coalescing pre-filter
- X1 Grade – 1 micron particulate after-filter
2 pre-filters and 1 after-filter kit:
- X5 grade – 5 micron coalescing pre-filter
- XA grade – 0.01 micron coalescing pre-filter
- X1 Grade – 1 micron particulate after-filter
Overview and Features
Features
- 1/8” to 1/2″ connection size range
- Rated ISO 8573-1 Class 3.2.1
- Differential pressure indicators included:
- Pop-up indicators on AD11-HR14 thru AD11-HR57
- Automatic float drains for coalescing pre-filters
- Manual Drains on particulate after-filters
- Two different kits available:
- 1 pre-filter and 1 after-filter
- 2 pre-filters and 1 after-filter
- Pressure regulator option available
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Kit Type | 1 pre-filter and 1 after-filter, 2 pre-filters and 1 after-filter |
|---|---|
| Air Dryer Model | MDH1 to MDH4, MDH5 to MDH6, VSA1 to VSA4, HR1 to HR4, HR5 to HR7 |
| Filter Rated Capacity | 6 SCFM, 15 SCFM, 32 SCFM, 50 SCFM |
| Connection Size | 1/8" NPT, 1/4" NPT, 3/8" NPT, 1/2" NPT |
| Pressure Regulator | None, Add pressure regulator |
