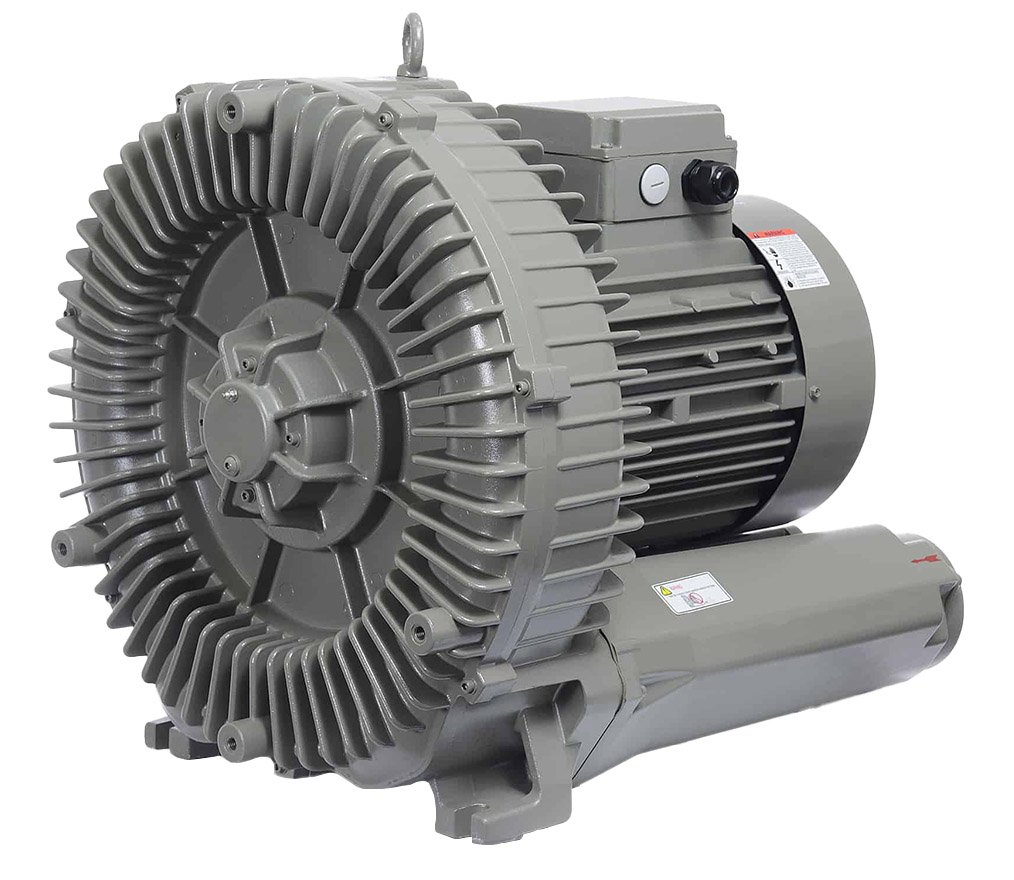

All-Star RBH9 Series Regenerative Blower
Regenerative blower series with a power rating up to 30 HP and capacity rating of 850 SCFM
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The All-Star RBH9 Series of regenerative blowers are designed for industrial applications, with options for a motorless or single stage, three phase motor for the blower. The motor contains a power rating of up to 30 HP, depending on selection. The straddle mounted impeller design allows for non-pulsating air flow. This blower is ideal for noise sensitive environments, with a noise level of 58 to 82db(A).
Additionally, the regenerative blower is able to be used for both vacuum and pressure operations, with the added feature of the filtered air being both oil-free and odor-free. This makes it suitable for use in operations such as bakeries or food related industries. This blower provides a capacity rating of up to 850 SCFM.
Overview and Features
Features
- IP 54 protection rating
- Class H insulation 1.15 service factor
- Performance tested ANSI/AMCA210-85
- 40°C ambient
- 850 SCFM capacity rating
- 4″ NPT inlet and outlet
- Straddle mounted impeller design
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Motor Options | Motorless, With three phase motor |
|---|---|
| Power Options | Up to 30 HP, 15 HP (11kW), 20 HP (15kW), 30 HP (22kW) |
| Voltage Options | Not available with current selection, 208-230/460/3/60, 575/3/60 |
