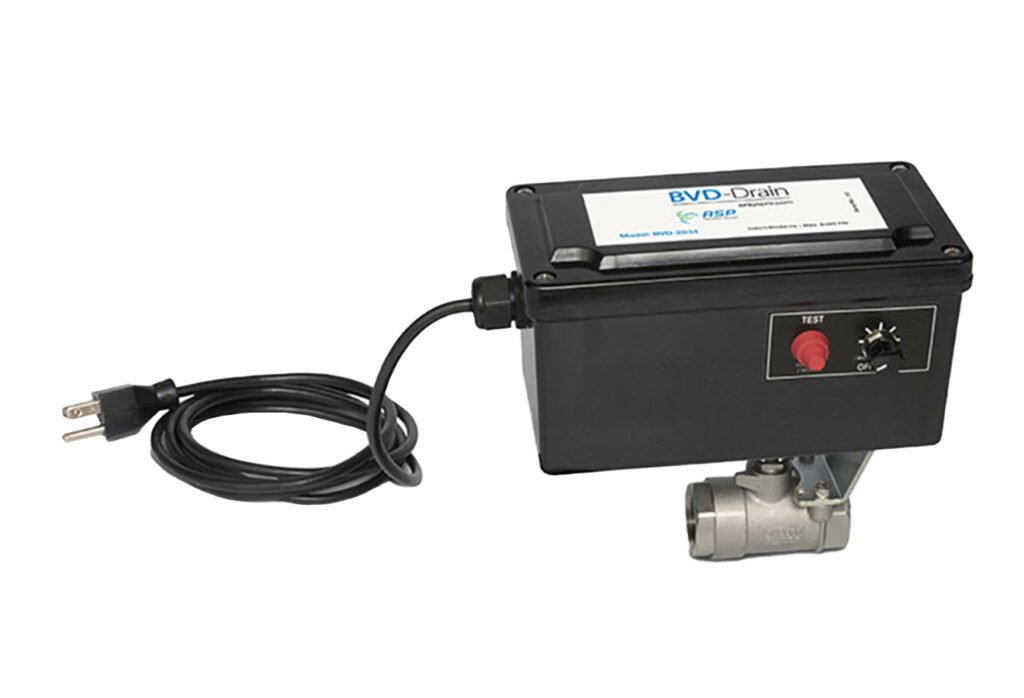

Air System Products BVD Ball Valve Drain

Bronze or stainless steel non-clogging condensate drain with a 1/4 to 1in NPT connection and electronic solid state timer

Condensate ManagementDrainsPrice on request

Request a tailored quote

Tell our team about your pressure, flow, voltage, and installation requirements.

Request a Quote

Product overview

Built around your operating requirements.

Description

The Air System Products BVD ball valve drain is non-clogging, timer-based, and uses a full-port ball valve. A heavy duty gear motor housed in a NEMA 4X enclosure ensures a long service life. A solid state timer module initiates a drain cycle by energizing the gear motor to rotate the ball valve 180° from closed to open and back to a closed position. The drain cycle lasts for approximately 8 seconds during which condensate is drained.

Overview and Features

Features

Straight through flow pattern
Robust seat and seal design
Test button
115/1/60 V
NEMA 4X enclosure

Worldwide supply. Send us your voltage, phase and frequency, the destination postal code, and your pressure and flow requirements. Lead time, shipping and warranty terms are confirmed in your quotation.
