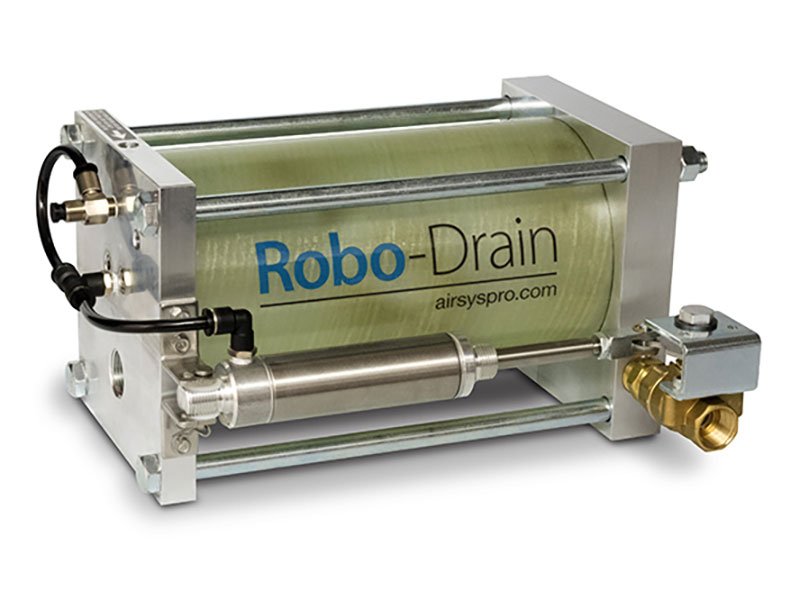

Air System Products Robo-Drain Zero Loss Drain
Fully automatic zero loss drain that requires no electricity, available in high pressure and high capacity models
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Air System Products Robo-Drain Zero Loss Drain is a fully pneumatic, heavy duty, zero loss drain that operates on demand, requires no electricity and is powered via clean, dry compressed air from 80 to 130 PSI. The drain features a horizontal low profile, isolated trigger assembly, translucent reservoir, and a non-clogging, full port drain valve. The Robo-Drain is flexible in its applications and one unit can work for multiple compressed air systems.
Overview and Features
Features
- 24 or 72oz capacity per cycle models available
- 3/4″ NPT inlets
- 1/2″ NPT outlet
- 250 PSI max pressure
- 750 PSI model available
- Powered by 80 to 130 PSI compressed air
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Model | 250 PSI with 80 to 120 PSI control air and test button, 250 PSI with 80 to 120 PSI control air, test button, and alarm, 250 PSI with 80 to 120 PSI control air, test button, stainless steel heads and internals, 250 PSI with 40 to 90 PSI control air and test button, 250 PSI high capacity with test button, 250 PSI high capacity with 40 to 90 PSI control air and test button, 750 PSI with stainless steel vessel and test button |
|---|
