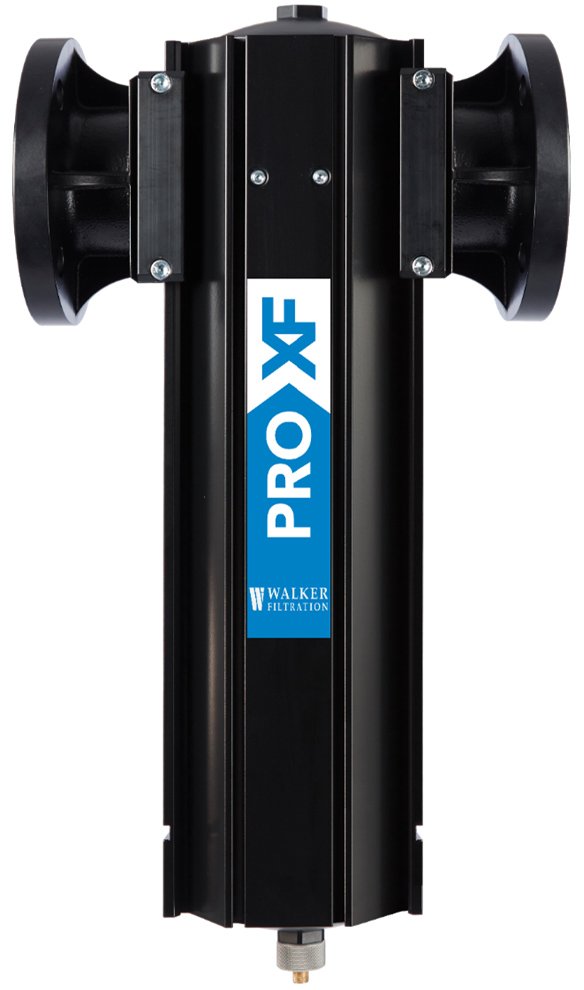

Walker Filtration PRO XF Series Water Separator
Centrifugal water separator with float operated automatic drain, and rated up to 232 PSI
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Walker Filtration PRO XF Series water separator is an effective solution for removing 99% of bulk water from compressed air systems using centrifugal force. By doing so, it prevents water contamination and boosts the reliability of the compressed air system, thus avoiding costly downtime. The product is tested in compliance with ISO 12500-4, ensuring minimal operating pressure loss and maintaining exceptional liquid removal, even at low velocities.
No replacement components are required for the PRO XF water separator, making it a viable, cost-effective solution.
Overview and Features
Features
- 700 to 3000 SCFM capacities available
- Connections:
- 700 SCFM: 2″ NPT
- 850 SCFM: 2.5″ NPT
- 1500 SCFM: 3″ NPT or 3″ flange
- 3000 SCFM: 4″ flange
- 232 PSI max pressure
- 35 to 176°F temperature range
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 700 SCFM, 850 SCFM, 1500 SCFM, 3000 SCFM |
|---|---|
| Connection Size | 2" NPT, 2.5" NPT, 3" NPT, 3" flange, 4" flange |
