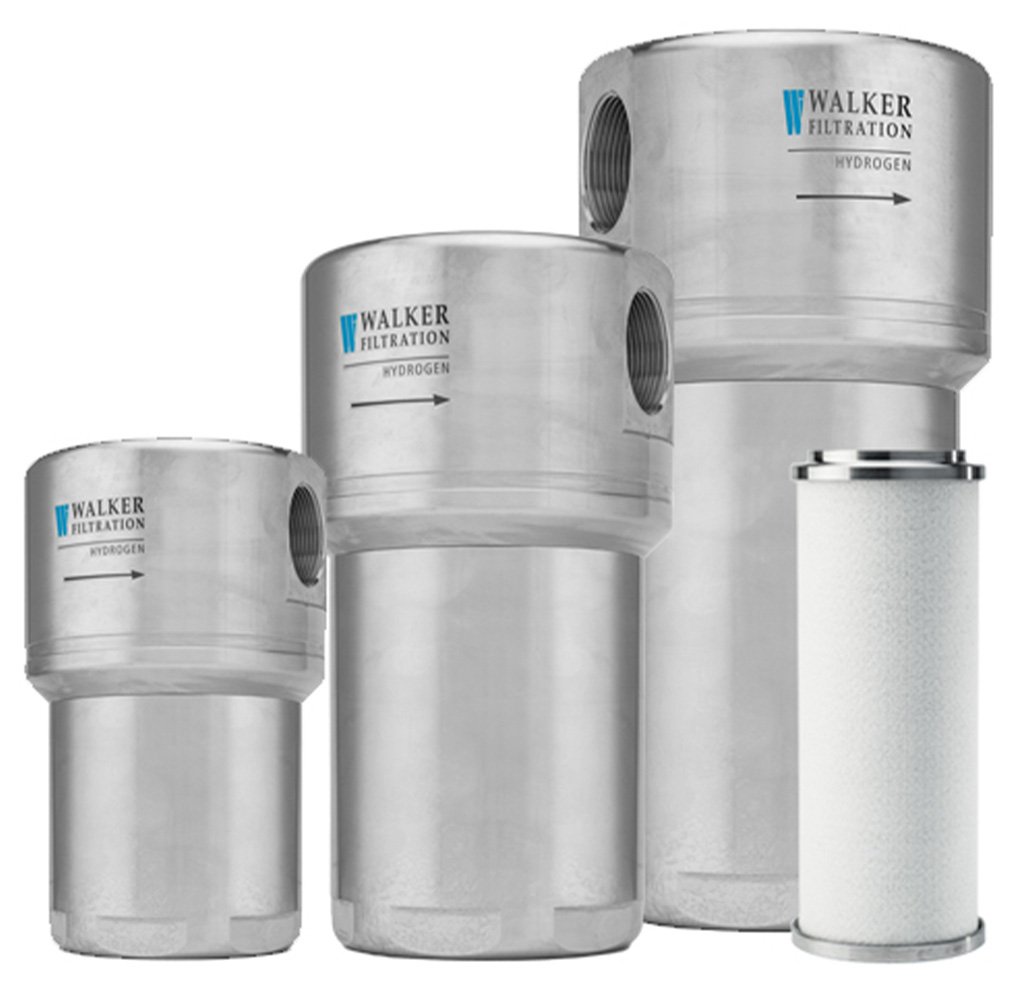

Walker Filtration Hydrogen Gas Filter
725, 1450, and 5075 PSIG models, 159 to 22189 SCFM, designed to meet the requirements of Hydrogen applications
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Walker Filtration Hydrogen Gas Filter provides a comprehensive, high efficiency solution to meet the stringent requirements of Hydrogen applications. Available in 1 micron and 5 micron filtration grades, the hydrogen gas filter provides low pressure drop and prevents particle entry in all pressure system components. Available in a wide range of flows (159 to 22189 SCFM) and pressures (725, 1450, and 5075 PSIG) that accommodate the various stages of your system.
Overview and Features
Features
- 725 PSIG Models:
- 159 to 6298 SCFM
- 1450 PSIG Models:
- 315 to 12478 SCFM
- 5075 PSIG Models:
- 1089 to 22189 SCFM
- 1/4″ to 2″ NPT connections depending on model selected
- Stainless steel construction
- PED 2014/68/EU Compliant for Group 1 Gases
- 2 element grades available:
- RX5: 5 micron
- RX1: 1 micron
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Pressure Rating | 725 PSIG, 1450 PSIG, 5075 PSIG |
|---|---|
| Capacity | 159 SCFM, 312 SCFM, 518 SCFM, 930 SCFM, 1554 SCFM, 3237 SCFM, 6298 SCFM, 315 SCFM, 618 SCFM, 1030 SCFM, 1848 SCFM, 3078 SCFM, 6386 SCFM, 12478 SCFM, 1089 SCFM, 2142 SCFM, 3569 SCFM, 6415 SCFM, 10683 SCFM, 22189 SCFM |
| Connection Size | 1/4" NPT, 3/8" NPT, 1/2" NPT, 3/4" NPT, 1" NPT, 1-1/2" NPT, 2" NPT |
| Filter Grade | 5 micron, 1 micron |
