Walker Filtration

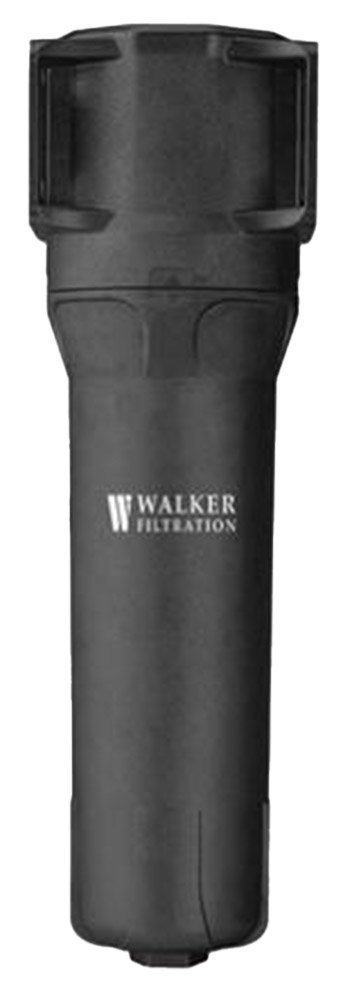

Walker Filtration Alloy High Pressure Filter
94 to 1882 SCFM, 725 PSIG pressure rating, 5 to 0.01 micron filter grades available
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Walker Filtration Alloy High Pressure Filter is available in flow capacities of 94 to 1882 SCFM and operating pressures of 725 PSIG. The Alloy High Pressure range includes 9 models which are available in BSP and NPT threaded connections from 1/4” to 2”.
The Alloy High Pressure Filter utilizes custom engineered filtration media to deliver exceptional filtration with minimal pressure drop, offering excellent value for money and low total cost of ownership. All models feature Walker Filtration’s push-fit filter element design with double O-ring seals for extra security against contamination by-pass. These models are available in all standard grades. Full corrosion protection is given a tough polyester powder coating on the outside following the Walker E-Coat both inside and out.
In addition, quality control of these CE marked products includes a hydrostatic test certificate and serial number for complete traceability.
Overview and Features
Features
- 94 to 1882 SCFM
- 725 PSIG
- 5 to 0.01 micron filter grades
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 94 SCFM, 147 SCFM, 265 SCFM, 324 SCFM, 492 SCFM, 736 SCFM, 1015 SCFM, 1132 SCFM, 1882 SCFM |
|---|---|
| Connection Size | 1/4" NPT, 3/8" NPT, 1/2" NPT, 3/4" NPT, 1" NPT, 1-1/2" NPT, 2" NPT |
| Filter Grade | 5 micron, 1 micron, 0.01 micron, 0.01 micron - Activated Carbon |
