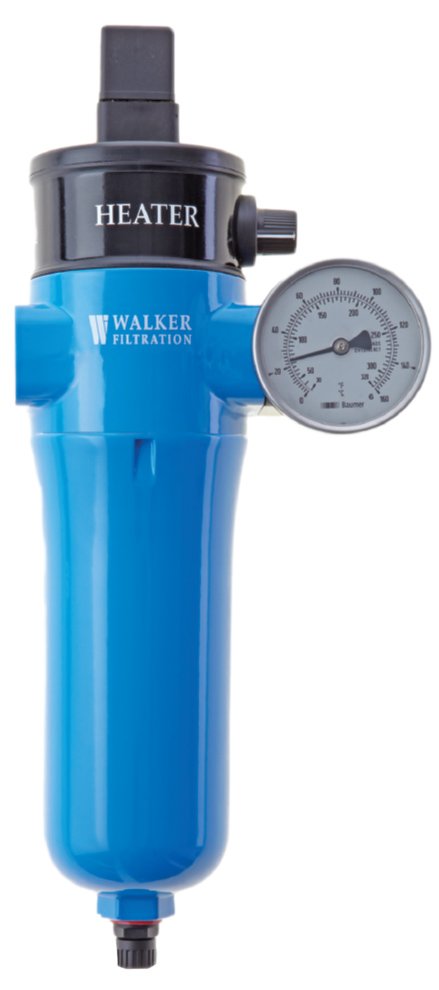

Walker Filtration A-Range Series Heater and Filter Package
27 or 54 SCFM, available with optional bi-metallic thermometer and pre-filter
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Walker Filtration A-Range Series Heater and Filter Package is designed to ensure variable compressed air temperature suitable for use in industrial or breathing air applications, allowing air to be filtered and temperature controlled between 68°F and 248°F.
The A-Range Series Heater uses an open wound heating coil and a high accuracy output temperature sensing device. This combination of fast responding heater and sensor allows the unit to adjust quickly to any variations in flow rate or line pressure, without deviation in the output temperature.
Overview and Features
Features
- 27 or 54 SCFM
- 232 PSIG max pressure rating
- 68°F to 248°F controlled output range
- -4°F minimum inlet temperature
- Semi-automatic Drain Valve (SDV25) standard
- Float Operated Automatic Drain Valve (ADVS16) fitted to pre-filter models
- 3/8″ NPT (27 SCFM) and 1/2″ NPT (54 SCFM) connections
- Optional bi-metallic thermometer
- Optional pre-filter
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 27 SCFM, 54 SCFM |
|---|---|
| Package | Filter and Heater, Pre-Filter, Filter, and Heater, Filter, Heater, and Bi-Metallic Thermometer, Pre-Filter, Filter, Heater, and Bi-Metallic Thermometer |
| Voltage | 230 volt AC - 50/60Hz, 115 volt AC - 50/60Hz |
