VPInstruments VPFlowScope M Flow Meter Start Kit
Compete start kit that includes flow meter, VPSensorCartridge, cables, power supply, documentation, and software
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The VPInstruments VPFlowScope M Flow Meter Start Kit is a four-in-one bidirectional flow meter for compressed air, nitrogen, oxygen, helium, argon, and other industrial gases. Featuring 4-20 mA and RS485 (Modbus RTU) outputs, and a built-in Ethernet (Modbus/TCP) interface, the VPFlowScope M is easy to connect directly to any network. It can be installed under pressure and simultaneously measure (bi-directional) thermal mass flow, pressure, temperature, and total flow.
Unlike traditional flow meters, the VPFlowScope M does not require traditional recalibration, where you have to ship the unit back. Instead, it consists of a transmitter and the VPSensorCartridge, reducing recalibration to a simple exchange.
Overview and Features
Features
- 1.64 to 490 SFPS flow range
- 2 to 16″ pipe
- 150 PSI max pressure
- Four sensors in one instrument:
- Bi-directional flow
- Pressure
- Temperature
- Totalized flow
- Ethernet (Modbus/ TCP)
- RS485 (Modbus RTU)
- 4-20 mA linearized, pulse mode or alarm output
- USB interface for configuration and downloading of data log files
- IP65 protection rated, NEMA 4 when mated to VPSensorCartridge
- 16ft cable with 5 pin M12 on one side included

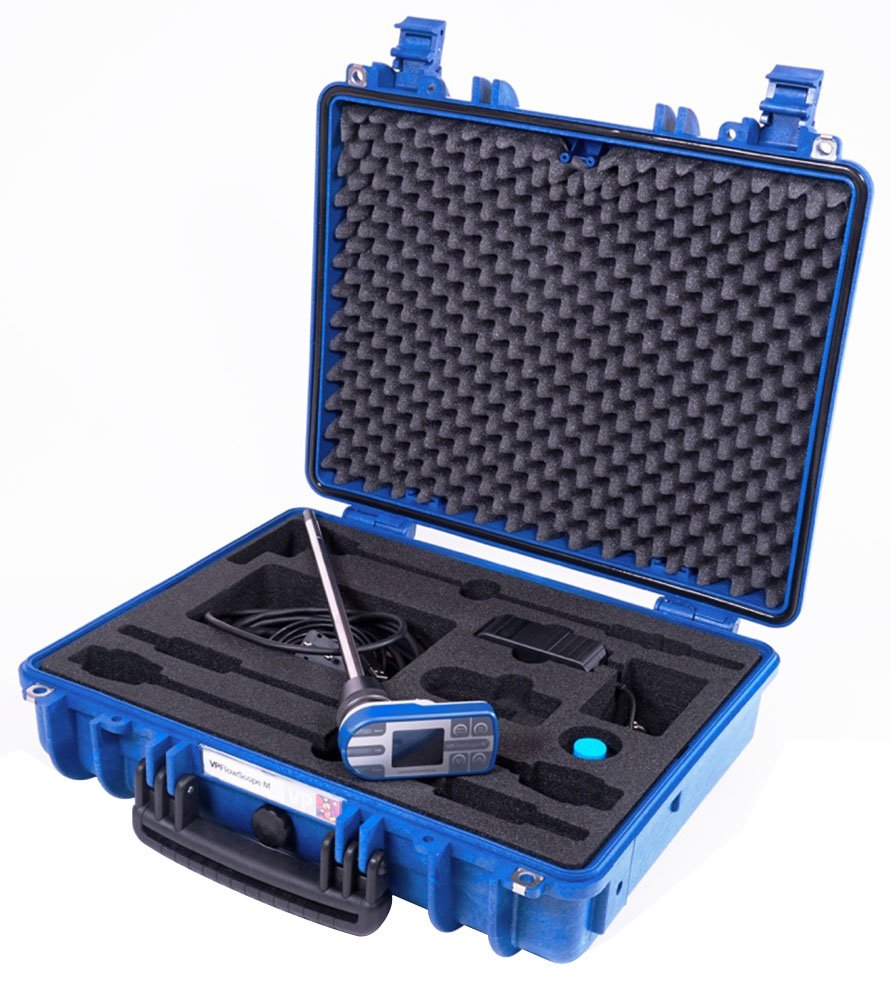

What’s in the Box
- VPFlowScope M Transmitter with display + data logger
- VPSensorCartridge (0..150 mn/sec, 0..10 bar, 0..60 deg C)
- Bi-directional option
- Mini USB cable
- 24V Power supply
- Compression fitting with proprietary, adjustable safety cable
- Cable 16.4ft for ethernet with 4-pin M12 and RJ45 connector
- Case
- ISO Calibration report
- User manual
- VPStudio software
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
Detailed specifications are available on request.
