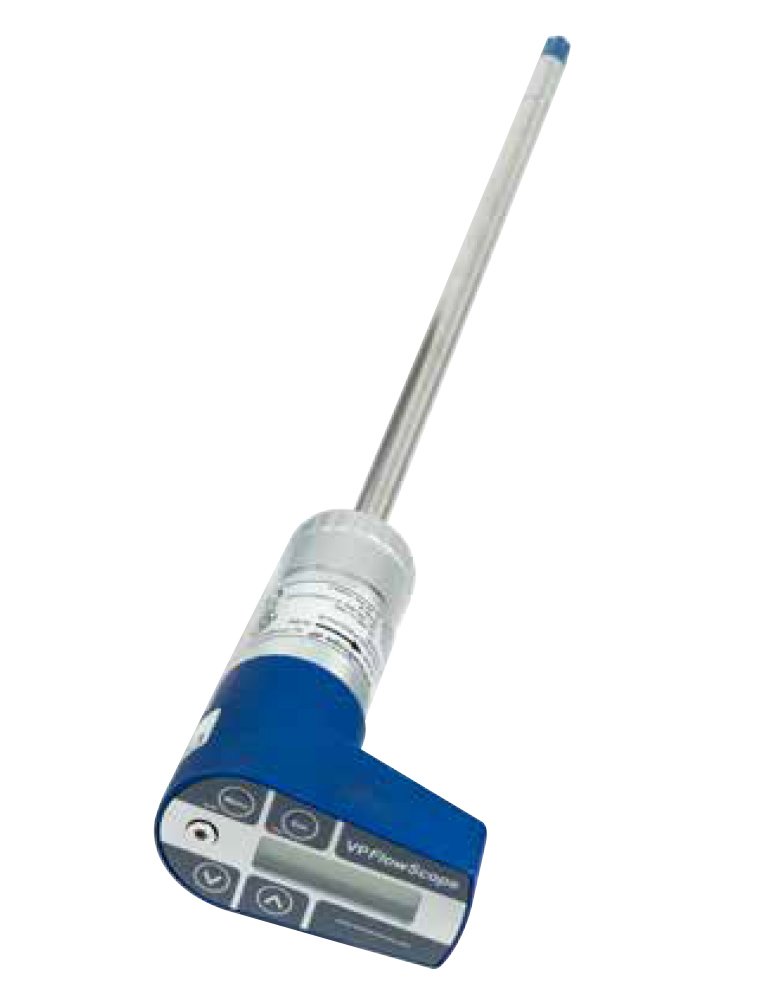

VPInstruments VPFlowScope DP Flow Meter
Differential pressure flow meter designed for hot, saturated compressed air flow measurements
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The VPInstruments VPFlowScope DP Flow Meter measures mass flow, temperature, and pressure simultaneously and is optimized for hot, saturated compressed air measurements. The design of this differential pressure flow meter for wet air has an LCD display that provides real-time information on the dP measurement. In combination with the built-in data logger, this enables you to make recordings for certain periods.
Overview and Features
Features
- 65 to 650 SFPS flow rate
- 0 to 250 PSIG pressure range
- 2 to 20″ pipe sizes
- -40 to 302°F temperature range
- Gas types:
- Air (dry and saturated)
- Nitrogen
- Oxygen
- Vacuum
- Outputs:
- RS485 (Modbus RTU) digital
- 4-20 mA analog
- 15″ probe length
- 12-24 VDC
- CE, UL/CUL approvals
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Model | VPFlowScope DP with connector cap (no display), VPFlowScope DP with display |
|---|
