VPInstruments VPFlowScope DP Flow Meter Start Kit
Compete start kit designed for hot, saturated compressed air flow measurements
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The VPInstruments VPFlowScope DP Flow Meter Start Kit measures mass flow, temperature, and pressure simultaneously and is optimized for hot, saturated compressed air measurements. The design of this differential pressure flow meter for wet air has an LCD display that provides real-time information on the dP measurement. In combination with the built-in data logger, this enables you to make recordings for certain periods.
Overview and Features
Features
- 65 to 650 SFPS flow rate
- 0 to 250 PSIG pressure range
- 2 to 20″ pipe sizes
- -40 to 302°F temperature range
- Outputs:
- RS485 (Modbus RTU) digital
- 4-20 mA analog
- 15″ probe length

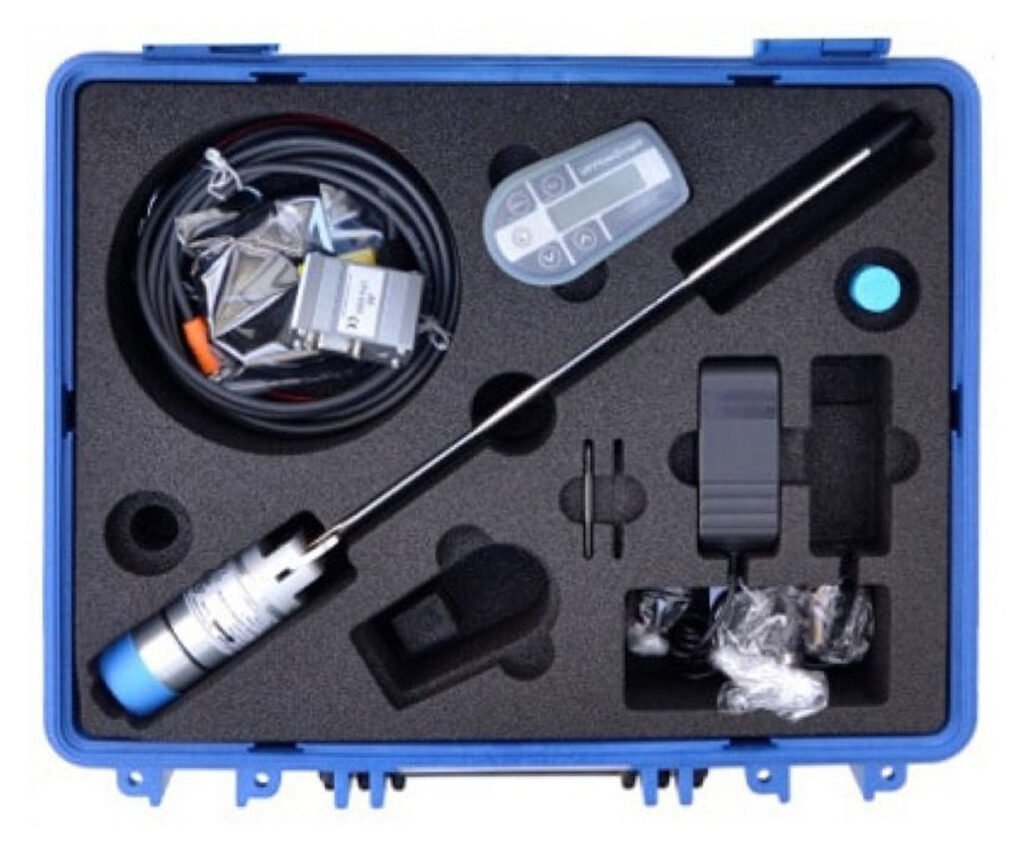

What’s in the Box
- The VPFlowScope DP Probe
- A three-row LCD display with 2.000.000 data points data logger
- Flow direction sensitivity
- Transport case
- Interface box JB5 with 16.4ft cable (M12 connector)
- 12V power supply
- RS485 to USB cable
- Compression fitting with Teflon ferrule
- Safety cable
- Calibration report
- User manual
- VPStudio software
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
Detailed specifications are available on request.
