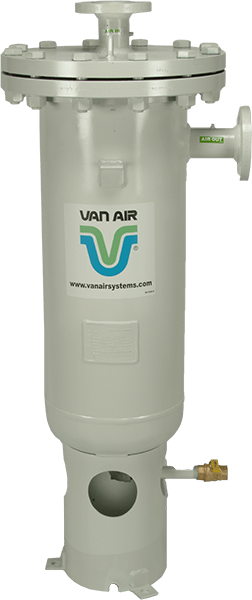

Van Air Systems VME Series Mist Eliminator
Removes oil and water aerosols from compressor systems down to 1ppm
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Van Air Systems VME Series Mist Eliminator is a special purpose coalescing filter for removing large volumes of oil and oil aerosols with a pressure drop of 1 PSID or less. The VME facilitates self-cleaning with a thick bed of glass fiber that provides continuous draining. Contaminants are trapped at various stages within the fiber bed, not only at the surface, preventing clogging and maintaining the low pressure drop.
Applications
- Chemical processing
- Petrochemical processing
- Refining
- Iron and steel production
- Cement and dry materials processing
- Automotive
- Mining
Overview and Features
Features
- 125 to 1,250 CFM capacity
- 2 to 4″ Flanged inlet/outlet connection
- 1″ NPT drain connection
- 1 PSID pressure drop
- ASME code stamped housing
- Primed white enamel exterior coating
- Manual drain
- 1/16″ corrosion allowance standard vessel design
- 10 year element life
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 125 CFM, 250 CFM, 500 CFM, 850 CFM, 1,250 CFM |
|---|---|
| Connection | 2" Flanged, 2 1/2" Flanged, 4" Flanged |
