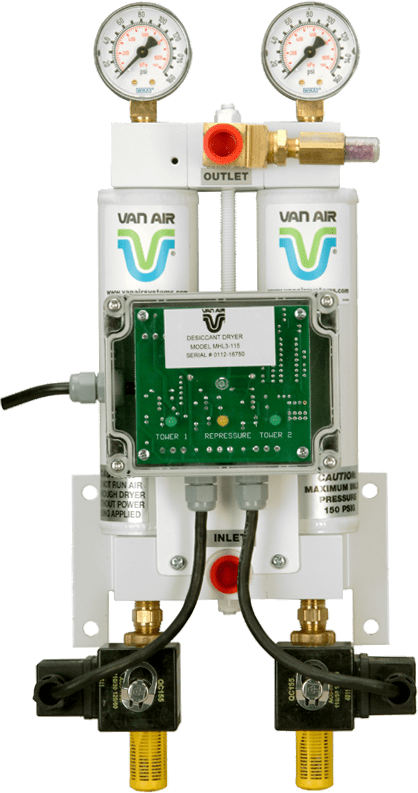

Van Air Systems MHL Series Heatless Desiccant Air Dryer
Compact design for point of use and OEM applications
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Van Air Systems MHL Series Heatless Desiccant Air Dryer delivers a -40°F pressure dew point to protect pneumatic equipment and processes form the harmful effects of compressed air moisture. In critical applications, it can deliver a -100°F PDP. When the dryer is wired directly to an air compressor pressure switch or to auxiliary contacts, the dryer purge valves will open/close in parallel with the loading/unloading of the air compressor or point-of-use process. Stored memory in the dryer controller resumes the dryer cycling at the point where it left off.
Applications
- Laboratories
- Gas generators
- OEM
- Critical points of use
- Protecting outdoor air lines
Overview and Features
Features
- 3 to 50 SCFM capacity
- 3/8″ to 1/2″ NPT connection
- 150 PSIG pressure rating
- 115/1/60 voltage
- -40°F to -100°F pressure dew point
- Molecular sieve desiccant
- Integrated cycle timer
- Control valves
- Tower pressure gauges
- Purge exhaust mufflers
- Visual moisture indicator
- Wall mounting brackets
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 3 CFM, 6 CFM, 9 CFM, 12 CFM, 16 CFM, 25 CFM, 35 CFM, 50 CFM |
|---|---|
| Connection | 3/8" NPT, 1/2" NPT |
